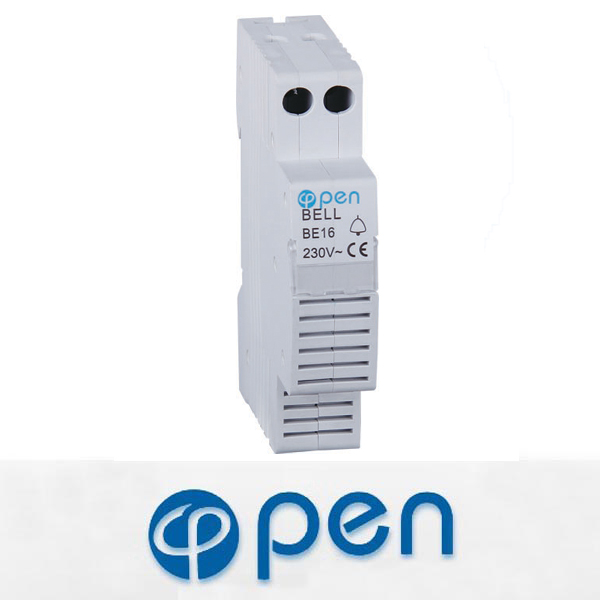

BE16 BELL

BE16 BELL
catalogue download Catalogue Download
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger Live Messenger
skype me Skype Me
e-mail us sales@opengroup.cc
Add to Basket Inquiry Basket




Summarize

Application scope
Be applicable to circuit with rated voltage 230V, rated frequency 50Hz/60Hz and rated current not exceeding 63A, providing the function of sound warning and prompting.
Normal operation and mounting requirement
Circumstance temperature -5°C~ +40°C, average temperature not exceeding 35°C.
Altitude above sea level less than 2000 m.
Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
Installation class II or III.
Pollution class 2.
Installation method DIN Rail mounting type.
The external magnetism shall not be more than 5 times of terrestrial one.
Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the handle is at upper position

Construction features
The product is of safety insulating type. Preferable components are used and secure high performances to the product: 0.5 quality silicon steel is adopted for less non-load consumption and less noise; Special framework of the coil bobbin has high insulation level; well-designed terminal case ensures easy and firm terminal connection. The functioning part is installed in the moulded case after being insulated.
1. Temperature rising is less than 30? with load less than 8VA.
2. Output voltage has high accuracy with tolerance within 3% of rated output voltage.
3. The product can withstand over-load up to 25% within 24 hours.

Order note
1.Minimum order quantity, time during the order to delivery;
2.Need to indicate type , specification , rated current , number of poles, quantity of the products while ordering

Main technical parameters


Type
     BE16
Rated Voltage
 AC 230(240) V24V12V8V
Rated frequency
       50(60)Hz





Product's advantage
1.Our products have the guarantee period of 36 calendar months,that is a high quality and reliability;
2.our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
3.The fast and flexible production form aim at the customer require;
4.The deliveries exactly in accordance with customer orders
5.The fast transportation.

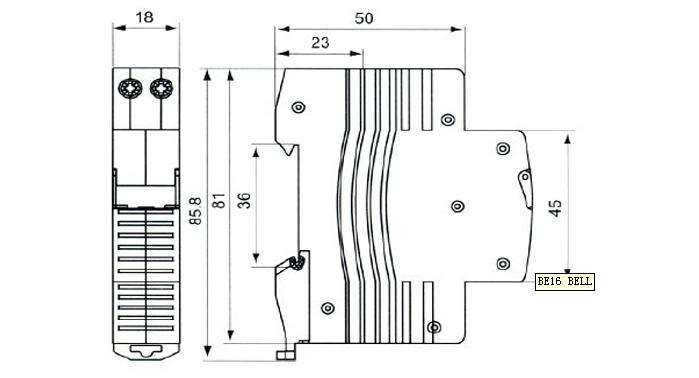

Overall and mounting dimensioned chart
