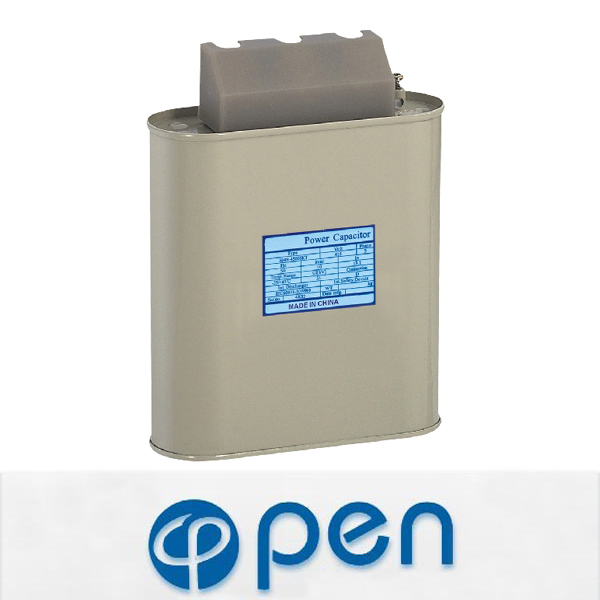

BSMJ-B

BSMJ-B
catalogue download Catalogue Download
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger Live Messenger
skype me Skype Me
e-mail us sales@opengroup.cc
Add to Basket Inquiry Basket


Scope of Application

The product complies with IEC 30-1998 standard.
Place for installation: Indoor
Ambient temperature: -40 ~+45
Capacity error: -5%~+10%
Withstand voltage: Withstanding 700VAC for 2~5s between terminals and 3000VAC for 10s between the whole terminals and the outer casing
Loss rate: below 0.12%

Allowable over voltage:

Below the rated voltage of 110% (Within 8 hours every 24 hours)
Below the rated voltage of 115% (Within 8 minutes every 24 hours)
Below the rated voltage of 120% (Within 5 minutes and less than two time evert month)
Below the rated voltage of 130% (Within 1 minute and less than two time evert month)
Allowable over current: Below the rated voltage of 130%
Insulating impedance: All terminals and the outer casing are above 300M (500VDC for one minute)
Internal discharge resistance: The internal protector reduces the voltage to below 75V in three minutes.

Mode of connection

Mode of connection

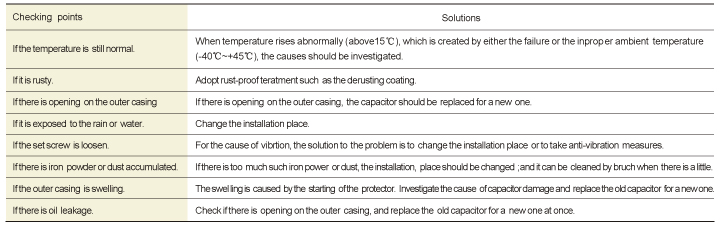

For safe operation, the items below for maintenance and check should carried out.
