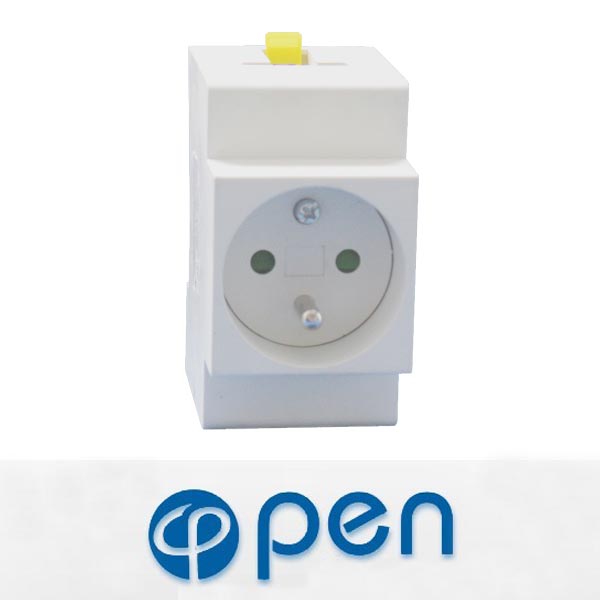

CAP7 Modular Socket

Products

Electrical Distribution (178)

- MCB (12)
- RCCB RCBO (12)
- MCCB (10)
- ACB (2)
- Fuse (31)
- Switch (16)
- Surge protective device (9)
- Weatherproof switch (5)
- Distribution box (53)
- Automatic transfer switch (8)
- 16 series (20)

Industrial Control (517)

Power Management (534)

- Voltage stabilizers/regulators (16)
- Controllers (12)
- Capacitor (73)
- Transformers (28)
- Power transformers (13)
- Motor soft start,inverters (5)
- Energy meter (246)
- UPS (19)
- Industrial plugs and sockets (84)
- Power System Test Equipment (8)
- Inverter (9)
- Solar Power/Battery (9)
- Control Protective Switching Device (12)

Search Catalog

You are here: Home >> Products >> MCB >> CAP7 Modular Socket

	Catalogue Download
	Print This Page
	Bookmark This Page

	Live Messenger
	Skype Me
	sales@opengroup.cc
Add to Basket Inquiry Basket

Application:

CAP7 Modular Socket can be used together with our other modular products for connection of mobile devices ,tools or electric and electronic non-modular equipments directly inside civil and industrial switchboards.

Specifications:

Type	Rated current (A)	Standard	Width (mm)	Connection capacity
CAP7	10、16、25	France	44.5	≤6mm²

Technical data:

Frequency: 50 or 60 HZ	Mounting category: ⅡⅢ
Electrical life: 5000 times	Pollution degree: 2
Rated insulation voltage UI: 500V	Protection class: IP20
Rated impulse withstand voltage UI mp: 5000V	Standard mounting: 35mm DIN rail
Dielectric test voltage at lnd ,freq, For 1 min: 2.8KV	Ambient temperature:-5℃to+40℃
Dielectric test voltage at lnd ,freq, For 1 min: 2.8KV	Storage temperature: -25℃to+70℃

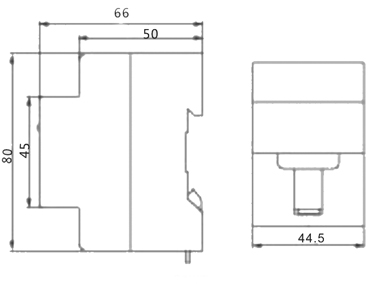

Dimensions :
