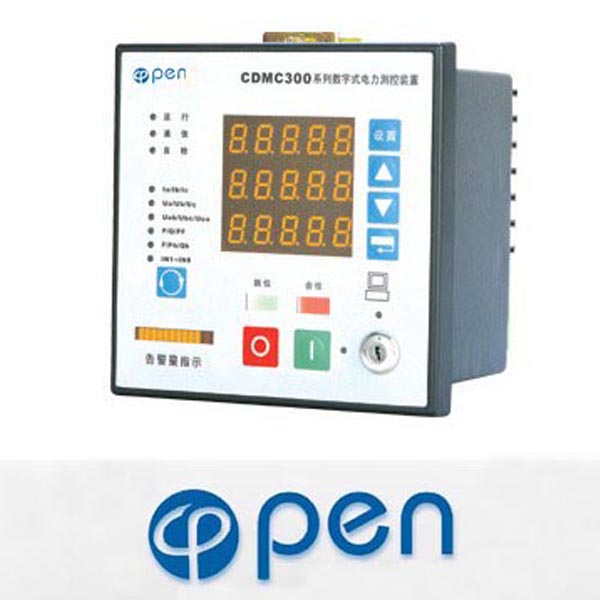

Part V, CDMC300 Series Digital Power Control Device
CDMC300 series of digital power monitoring device, the main functions include measuring, monitoring, control, communications, etc.
Specific to a single electrical circuit for "unit" of the design, wiring and flexible, compact, friendly interface
Is the ideal multi-purpose low-voltage integrated power system monitoring and control instrumentation.
Terms of Use
* For the low-pressure system into the line, bus, heavy load outlet of the high-precision measurement and control.
* For use in pressure systems change monitoring stations.
* For all the old station rehabilitation, with existing protection devices integrated substation automation system.
Model
* CDMC300: high-precision electrical measuring and control device (PT100)
* CDMC300: high-precision electrical measuring and control device (PT380 2 analog)

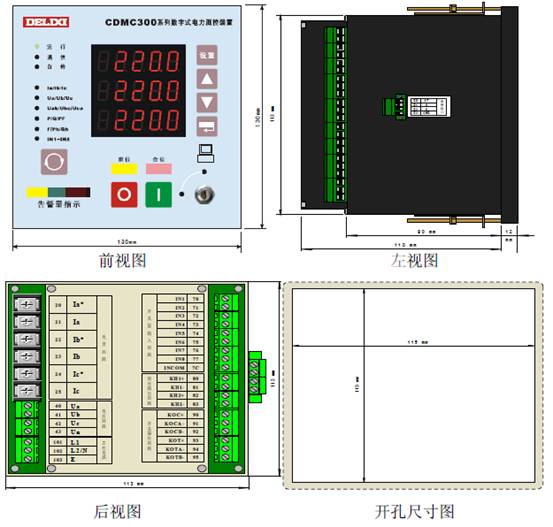

Mechanical installation diagram (Figure 5-1)
