1.Application

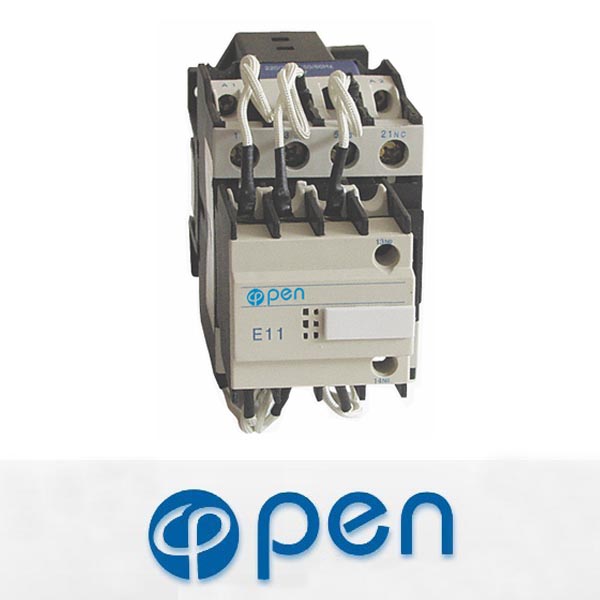

CJ19 series changeover capacitor contactor is mainly applicable to a power line of AC 50Hzor 60Hz, rated working voltage up to 380V. It is used to put a low voltage parallel connectedcapacitor in operation or switch it off in a low voltage reactive power compensation device. Thecontactor is equipped with a surge suppressor, which can effectively reduce the surge currentpassing through the capacitor at weitching on and suppress the over-voltage at switching off.The product is in conformity with the standards IEC947-4-1.

2.Specification

Electrical lfie		CJ19-25C	CJ19-32C	CJ19-43C	CJ19-63C	CJ19-95C
Rating current le (380V)A		100	100	29	100	100
Power ofcontrolled capacitor	220/230V	17	23	10	43	63
Power ofcontrolled capacitor	380/400V	6	9	20	15	22
Rating insulation voltage(V)		12	18	500	30	40
Rating operational voltage(V)		380
Restrained surge capacity		20le
Operation range		Pick-up:(85%~110%); Drop-out:(20%~75%) Us
Coil power(VA)	Start-up	70	110	110	200	200
Coil power(VA)	Holding	8	11	11	20	20
Control capacity of auxiliary contact		AC-15 360VA; DC-13 33W
Weight(Kg)		0.44	0.63	0.64	1.4	1.5

3. Outline and Mounting Dimension

Type

Amax

Bmax

Cmax

Dmax

E

F

Note

CJ19-25C

80

47

124

76

34/35

50/60

Screw mount/35mm rail mount

CJ19-32C

90

58

134

86

40

48

CJ19-43C

90

58

136

86

40

48

CJ19-63C

132

79

150

CJ19-95C

135

87

158

Type	Amax	Bmax	Cmax	Dmax	E	F	Note
CJ19-25C	80	47	124	76	34/35	50/60	Screw mount/35mm rail mount
CJ19-32C	90	58	134	86	40	48
CJ19-43C	90	58	136	86	40	48
CJ19-63C	132	79	150
CJ19-95C	135	87	158
