.Application

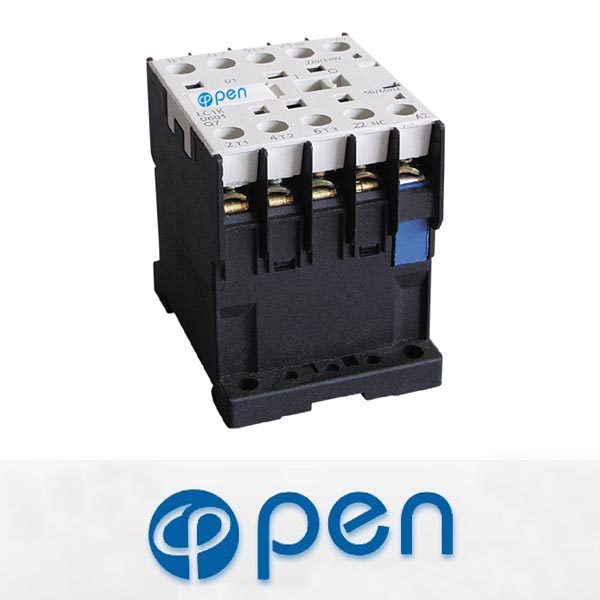

CJX2-K series AC contactor is suitable for use in the circuit up to the rate and frequentstarting, controlling the AC motor. The addition of auxiliary contact group to the contactor, com-bined with the proper thermal relay, can act to protect the circuit bound to overload. It conformsto IEC60947-4-1.
2.Specification
|
Type |
CJX2-K06 |
CJX2-K09 |
CJX2-K12 |
||
|
Rating working voltage(V) |
380V |
AC-3 |
6 |
9 |
12 |
|
AC-4 |
2.6 |
3.5 |
5 |
||
|
Appointed heating current(A) |
16 |
20 |
20 |
||
|
The max current when turn on(A) |
380V |
60 |
90 |
120 |
|
|
660V |
72 |
108 |
144 |
||
|
The max current for turn off(A) |
380V |
48 |
72 |
96 |
|
|
660V |
60 |
90 |
120 |
||
|
Three phases cage motors power whichcan be pulled AC3(KW) |
220v |
1.5 |
2.2 |
3 |
|
|
380v |
2.2 |
4 |
5.5 |
||
|
660v |
3 |
4 |
4 |
||
|
Operation frequency(time/hour) |
Electricity life(x104) |
AC-3 |
1200 |
||
|
AC-4 |
300 |
||||
|
Electrical lfie |
AC-3 |
5x106 |
|||
|
AC-4 |
1x105 |
||||
|
Mechanical life |
3x106 |
||||
