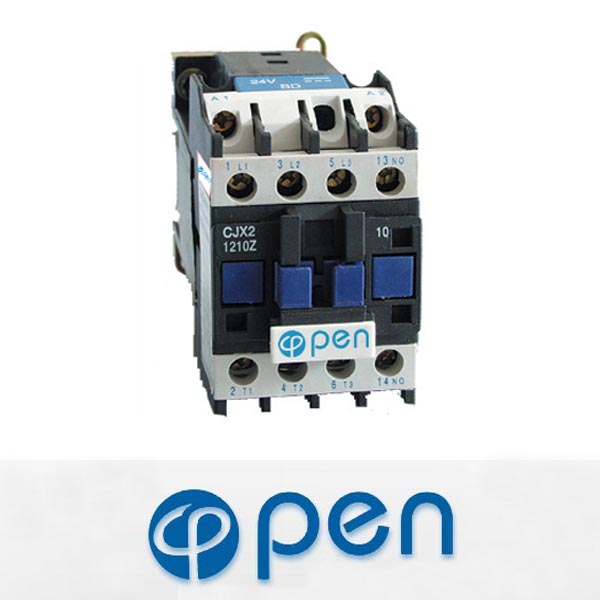

CJX2-Z

CJX2-Z
catalogue download Catalogue Download
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger Live Messenger
skype me Skype Me
e-mail us sales@opengroup.cc
Add to Basket Inquiry Basket

1.Application

CJX2-Z series DC operated AC contactor is suitable for use in the circuits up to rated voltage660V AC 50Hz or 60Hz, and in rated current 9-95A in AC-3/380V load circuits. For remotecontrolling circuit making, breaking and frequent starting AC motors. It can also combine withthe auxiliary contact group, air delayer, thermal relay devices etc.

2.Specification
Type
CJX2-09Z
CJX2-12Z
CJX2-18Z
CJX2-25Z
CJX2-32Z
Rated working current(A)
380V
AC3
9
12
18
25
32
AC4
3.5
5
7.7
8.5
12
660V
AC3
6.6
8.9
12
18
21
AC4
1.5
2
3.8
4.4
7.5
Rated heat current(A)
25
25
32
40
50
Controllable power(KW)
220/240V
2.2
3
4
5.5
7.5
380/400V
4
5.5
7.5
11
15
415V
4
5.5
9
11
15
500V
5.5
7.5
10
15
18.5
600/690V
5.5
7.5
10
15
18.5
Weight(Kg)
DC contactor
0.64
0.34
0.65
0.65
0.95
Measure(Mm3)
DC contactor
76x115x47
76x115x47
76x120x47
88x130x59
86x135x59
Pole
3, 4
3, 4
3
3, 4
3
Rated working voltage(V)
380, 660
380, 660
380, 660
380, 660
380, 660
Rated insulation voltage(V)
660
660
660
660
660
Mechanical life x104
1000
1000
1000
1000
800
Electrical life
AC x104
100
100
100
100
80
AC4 x104
20
20
20
20
20
Operating frequency
Electrical life
AC3 x104
1200
1200
1200
1200
600
AC4 x104
300
300
300
300
300
Mechanical life x104
3600
3600
3600
3600
3600
Rated controlled voltage(V)
24-660
24-660
24-660
24-660
24-660
Working voltage
Close
DC%
0.85-1.1Us
0.85-1.1Us
0.85-1.1Us
0.85-1.1Us
0.85-1.1Us
Open
DC%
0.10-0.75Us
0.10-0.75Us
0.10-0.75Us
0.10-0.75Us
0.10-0.75Us

Type
CJX2-40Z
CJX2-50Z
CJX2-65Z
CJX2-80Z
CJX2-95Z
Rated working current(A)
380V
AC3
40
50
65
80
95
AC4
18.5
24
28
37
44
660V
AC3
34
39
42
49
55
AC4
9
12
14
17.3
21.3
Rated heat current(A)
60
80
80
125
125
Controllable power(KW)
220/240V
11
15
18.5
22
25
380/400V
18.5
22
30
37
45
415V
22
30
37
45
45
500V
22
30
37
55
55
600/690V
30
33
37
45
55
Weight(Kg)
DC contactor
2.185
2.185
2.185
2.525
2.525
Measure(Mm3)
DC contactor
128x175x81
128x175x87
128x175x87
128x183x87
128x183x8
Pole
3, 4
3, 4
3, 4
3, 4
3, 4
Rated working voltage(V)
380, 660
380, 660
380, 660
380, 660
380, 660
Rated insulation voltage(V)
660
660
660
660
660
Mechanical life x104
800
800
800
600
600
Electrical life
AC x104
80
80
80
60
60
AC4 x104
15
15
15
10
10
Operating frequency
Electrical life
AC3 x104
600
600
600
600
600
AC4 x104
300
300
300
300
300
Mechanical life x104
3600
3600
3600
3600
3600
Rated controlled voltage(V)
24-660
24-660
24-660
24-660
24-660
Working voltage
Close
DC %
0.85-1.1Us
0.85-1.1Us
0.85-1.1Us
0.85-1.1Us
0.85-1.1Us
Open
DC %
0.10-0.75Us
0.10-0.75Us
0.10-0.75Us
0.10-0.75Us
0.10-0.75Us
3. Outline and Mounting Dimension
CJX2-09Z-12Z
Amax
Bmax
Cmax
Dmax
Emax
a
b
φ
L
P
S
CJX2-18Z
47
76
82(116)
120.5(154.5)
140.5(174.5)
34/35
50/60
4.5
60(95)
105
8.6
CJX2-25Z
47
76
87(122)
125.5(160.5)
145.5(180.5)
34/35
50/60
4.5
61(96)
11.3
10.4
CJX2-32Z
57
86
95(131)
133.5(169.5)
153.5(189.5)
40
48
4.5
70(107)
13.2
11.7
CJX2-4011Z-6511Z
57
86
100(138)
138.5(176.5)
158.5(196.5)
40
48
4.5
71.6(120)
14.5
13
CJX2-4004/4008Z -6504/6508Z
77
129
116(173)
154.5(211.5)
174.5(231.5)
40
100/110
6.5
78(135)
20
8.6
CJX2-8011Z-9511Z
84
129
116(173)
154.5(211.5)
174.5(231.5)
40
100/110
6.5
78(135)
20
8.6
CJX2-09Z-12Z
87
129
127(188)
165.5(226.5)
185.5(246.5)
40
100/110
6.5
83(140)
23.5
12
CJX2-8004/8008Z -9504/9508Z
96
129
127(183)
160.5(221.5)
180.5(241.5)
40
100/110
6.5
83(140)
23.5
12
