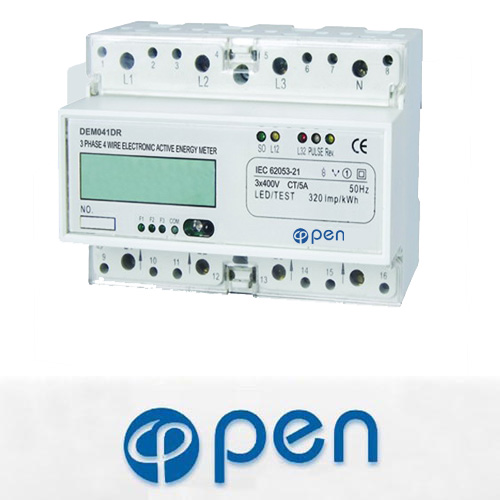

DEM041DR

THREE PHASE THREE WIRE ELECTRONIC MULTI-RATE DIN-RAIL ACTIVE ENERGY METER





Application

Model DEM041DR three phase three wire electronic multi-rate DIN rail active energy meter is a kind of three phase three wire three tariffs (time-sharing billing)active energy meter, the meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase three wire AC electricity net. This meter has seven digits LCD displays shows various consumption data and information. And there are far infrared and RS485 communication module in it. It is use for setting and reading the meter. Contact with all kind of AMR system conveniently. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc. This meter has already got the patent certificate from China State Intellectual Property Office at present. Patent certificate NO. ZL 2006 3 0107349.1, any other country patent certificate are in assessing..





Functions and features

35mm standard DIN rail installation, complying with standard DIN EN50022. Or front board installed (mounting holes center distance 63 mm), users can choose any one by themselves.
Ten pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.
Type S wiring (Inlet from bottom, outlet from top), use CT connect operation, may select 27 CT ratio, the meter will read directly after set, and needn’t multiplied by CT rate.
Have three tariffs, may select 12 daily period of times. You can set the date arbitrary which can automatic read the meter every month. May select single tariff function in weekend. (Please specified when ordering)
There are a clock and Maintenance-free backup lithium batteries in it. Battery capacity detection and display all the time. It can keep the electricity data for 12 months. The data can be kept forever after blackout.
May select cycle display (default) or push the button itemized display, we can set the cycle display, it can display 15 data at most. Can select the data which displayed. Data 5+2 digits(99999.91kWh, Only when CT ratio 5:5A) or 7 digits display. It is choose by the CT ratio which is set.
There are a polarity port of pulse output passive closed and a no polarity port of pulse output passive distant, the output rate is 10kWh / Pulse). Complying with standard IEC 62053-31 and DIN 43864.
There are far infrared and a port of RS485 communication data. It is use for setting and reading the meter. Set and operation have password protection, communication agreement complying with standard DL/T645-1997.
Nine LED instructions respectively power supply state, signal of energy impulse, the direction of the flow of load current, the tariff state just now and the data communications state.
Single direction two components measure three phase three wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is DS).





Technical parameters

 Model

Accuracy

Reference
voltage (V)

Current
specifications (A)

Starting
current (A)

Insulation
performance

 DEM041DR

Class 1

3 x 220
3 x 400

CT/ 5A

0.01

AC voltage 4kV for 1 minute,
1.2/50us waveform
impulse voltage 6kV

*If you need different reference voltage or current specification, please advisory our sales.

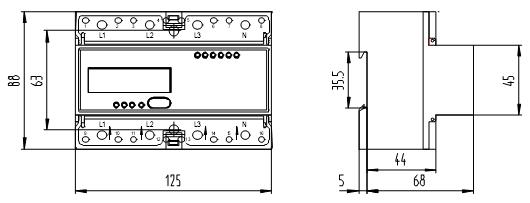

Outer and mount dimension

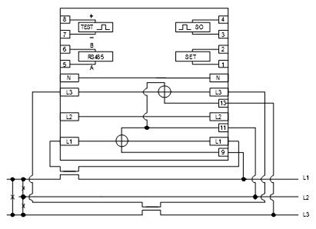

Wiring diagram (Type S)

Terminal

 Note

L1 L1 phase CT
L2 Don't use
L3 L3 phase CT
  (Inlet from bottom, outlet from top)
7 and 8 Port of pulse output passive closed
3 and 4 Port of pulse output passive distant
9 L1 phase line
11 L2 phase line
13 L3 phase line
N Don't use
5 and 6 Port of RS485 data communication
1 and 2 Port of set the CT ratio
