DEM071QC

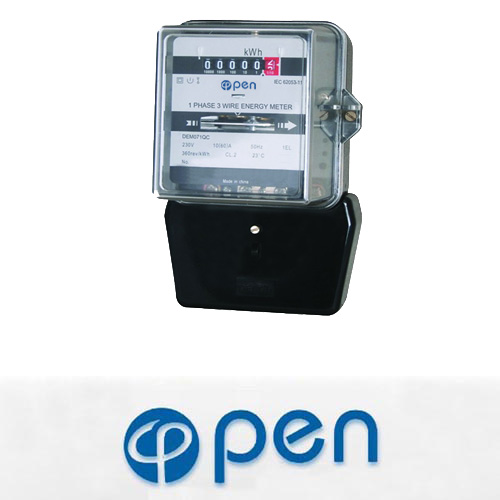

SINGLE PHASE THREE WIRE  ELECTROMECHANICAL FRONT BOARD INSTALLED ACTIVE ENERGY METER


Application

Model DEM071QC single phase three wire electromechanical front board installed active energy meter is a kind of new style single phase three wire active energy meter, it is on the basis of original single phase electromechanical meter, and fully absorb new technologies about electromechanical meter from domestic and abroad, and development long-life technology. The meter completely accord with relevant technical requirements of class 2 single phase active energy meter stipulated in international standard IEC 62053-11. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase three wire AC electricity net, it is use for setting indoor or out door meter box, and it can display total energy consumption by drum wheel mechanical register. It has following features: high overload, power loss, long-life, specious nice appearance, etc.



Functions and features
Front board three fixed installation, the cover is made of PC material which is transparent and anti-UV molded overall, the bottom of the meter and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall. It has following features: Good weather ability, high rigid, specious appearance, etc.
The meter frame adopt top-quality steel plate once molding with excellent mechanical strength, stable structure and anti-impact.
Voltage components is used of all closed vacuum pouring coil by epoxy resin. Current components is used of double insulation structure, has good electrical characteristics.
The meter adopt magnetic thrust bottom bearing, oriented bearing is made of lubrication graphite bush and stainless steel needle. It has following features: small abrasion, long life and minimal friction, etc.
All kinds of adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjust which is finished by anti-creeping hole of disc and convenient for adjusting by users.
Standard configuration 5 digits display by drum wheel mechanical register, may select 6 digits display by drum wheel mechanical register (Product Configuration code is QF).
Single component measure single phase three wire active energy consumption. Complying with standard IEC 62053-11.
Direct connect operation, type 2A wiring.
Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is PC).


Technical parameters

 Model

Accuracy

Reference
voltage (V)

Current
specifications (A)

Starting
current (A)

Insulation
performance

 DEM071QC

Class2

240

5(30)
10(60)
20(100)

0.025
0.05
0.1

AC voltage 4kV for 1 minute,
1.2/ 50us waveform
impulse voltage 6kV

*If you need different reference voltage or current specification, please advisory our sales.

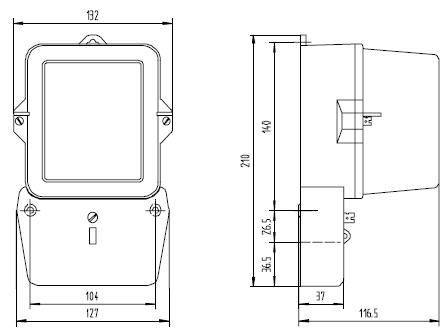

Outer and mount dimension


Wiring diagram (Type 2A)

Terminal

 Note

1 Inlet  L1 phase line
3 Inlet  L2 neutral line
4 Outgoing L2 neutral line
5 Outgoing L1  phase line
