DEM312GF

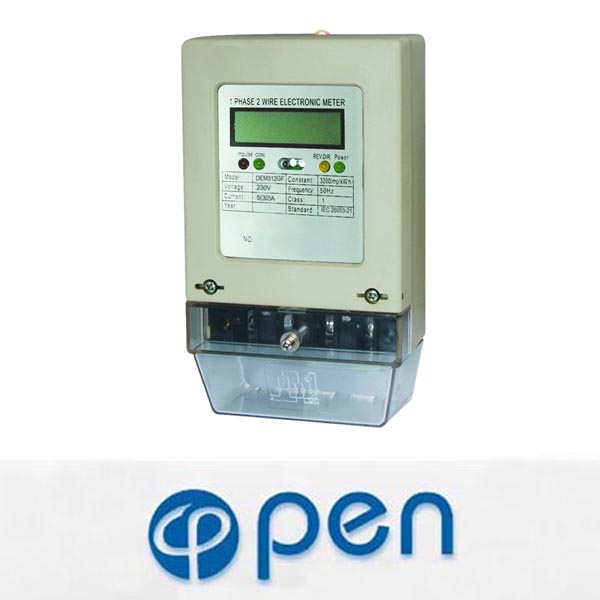

SINGLE PHASE ELECTRONIC FRONT BOARD INSTALLED ACTIVE ENERGY METER


Application

Model DEM312GF single phase electronic front board installed active energy meter is adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or out door, and this meter has seven digits LCD displays shows the active energy consumption. And there are far infrared and RS485 communication module in it. Contact with all kind of AMR system conveniently. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.



Functions and features
Front board three fixed installation, up and down mounting holes center distance 130-147 mm, users can choose any one by themselves.
May select 6+1 digits display (999999.1kWh) or 5+2 digits display, it can be arbitrary set by users from far infrared or port of RS485 data communication.
Standard configuration one port of pulse output passive (polarity), May select increase a distant port of pulse output passive (nonpolarity). And contact with all kind of AMR system conveniently, Complying with standard IEC 62053-31 and DIN 43864.
There are a port of far infrared data communication and a port of RS485 data communication. Standard configuration communication agreement complying with standard DL/T645-1997, can also choose any other communication agreement.
Three LED instructions power supply state, signal of energy impulse and communication state.
Automatic detection the direction of the flow of load current. And instructions by individual LED. (Only yellow energy impulse signal when working, that is meaning the direction of the flow of load current reverse).
Single direction single component measure single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
Direct connect operation, there are two types wiring you may select. Standard configuration type 1B wiring, may select type 1A wiring (Product Configuration code is BS).
Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is GC).


Technical parameters

 Model

Accuracy

Reference
voltage (V)

Current
specifications (A)

Starting
current (A)

Insulation
performance

 DEM312GF

Class 1

127
230

5(30)
10(60)
20(100)

0.02
0.04
0.08

AC voltage 4kV for 1 minute,
1.2/50us waveform
impulse voltage 6kV

*If you need different reference voltage or current specification, please advisory our sales.

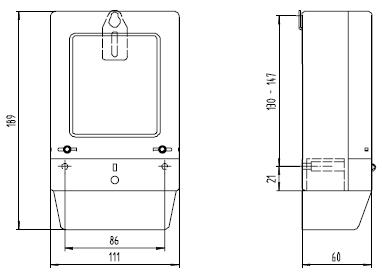

Outer and mount dimension

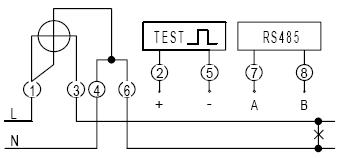

Wiring diagram (Type 1B)

Terminal

 Note

1 Inlet phase line
3 Outgoing phase line
4 Inlet neutral line
6 Outgoing neutral line
2 and 5 Port of pulse output passive
7 and 8 Port of RS485  data communication
