DEM313JF

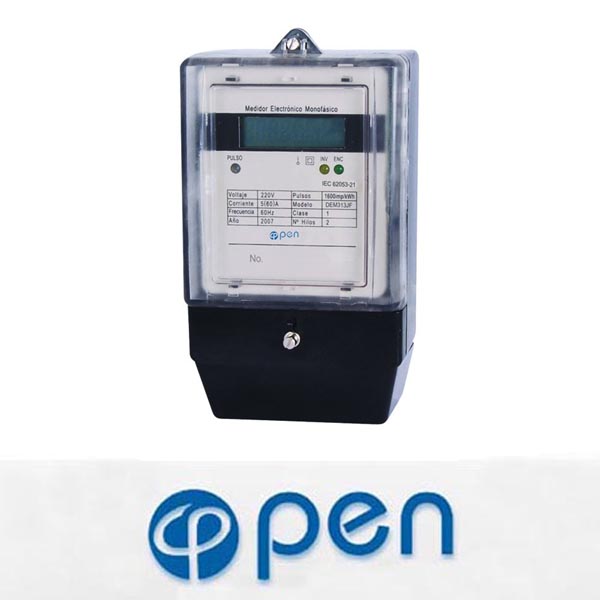

SINGLE PHASE ELECTRONIC FRONT BOARD INSTALLED ACTIVE ENERGY METER


Application

Model DEM313JF single phase electronic front board installed active energy meter is a kind of new style single phase two wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or setting out door directly, and this meter has seven digits LCD displays shows the active energy consumption. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.



Functions and features
Front board three fixed installation, the cover is made of PC material which is transparent and anti-UV molded overall, the bottom and the terminal of the meter are made of black glass fiber which can fire-retardant and enhanced PC material, and the IP rating up to IP56. It has following features: good weather ability, anti-impact, good insulation performance, specious appearance, etc.
Standard configuration the bottom and the terminal of the meter are closed by the screw of the meter, may select the bottom and the terminal of the meter are closed by ultrasonic. (Please specified when ordering).
Seven digits display LCD, standard configuration 6+1 digits display (999999.1kWh,). May select 5+2 digits display (Please specified when ordering).
Standard configuration one port of pulse output passive (polarity), May select increase a distant port of pulse output passive (nonpolarity). And contact with all kind of AMR system conveniently, Complying with standard IEC 62053-31 and DIN 43864.
Two LED instructions respectively power supply state (green) and signal of energy impulse (red).
Automatic detection the direction of the flow of load current. And instructions on individual LED. (Only yellow energy impulse signal when working, that is meaning the direction of the flow of load current reverse).
Single direction single component measure single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
Direct connect operation, there are two types wiring you may select. Standard configuration type 1B wiring, may select type 1A wiring (Product Configuration code is CS).
Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is JC).


Technical parameters

 Model

Accuracy

Reference
voltage (V)

Current
specifications (A)

Starting
current (A)

Insulation
performance

 DEM313JF

Class 1

127
230

5(30)
10(60)
20(100)

0.02
0.04
0.08

AC voltage 4kV for 1 minute,
1.2/50us waveform
impulse voltage 6kV

*If you need different reference voltage or current specification, please advisory our sales.

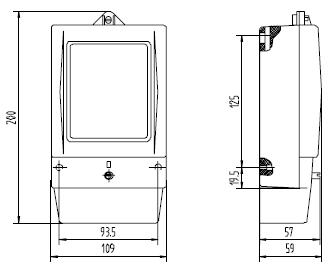

Outer and mount dimension


Wiring diagram (Type 1B)

Terminal

 Note

1 Inlet phase line
3 Inlet neutral line
4 Outgoing  neutral line
6  Outgoing  phase line
2 and 5 Port of pulse output passive
