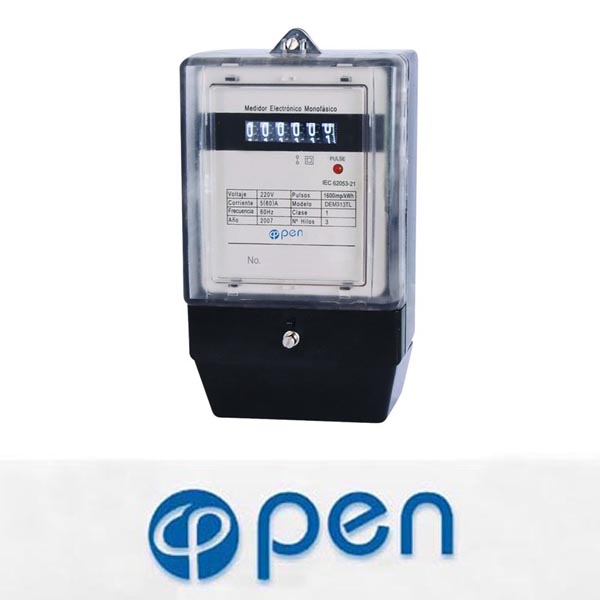

DEM313TL

SINGLE PHASE ELECTRONIC FRONT BOARD INSTALLED ACTIVE ENERGY METER


Application

Model DEM313TL single phase three wire electronic front board installed active energy meter is a kind of new style single phase three wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase three wire AC electricity net, it is use for setting indoor or setting out door directly, and it can display total energy consumption by step motor type impulse register. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.



Functions and features
Front board three fixed installation, the cover is made of PC material which is transparent and anti-UV molded overall, thebottom and the terminal of the meter are made of black glass fiber which can fire-retardant and enhanced PC material, and theIP rating up to IP56. It has following features: good weatherability, anti-impact, good insulation performance, speciousappearance, etc.
Standard configuration the bottom and the terminal of the meter are closed by the screw of the meter, may select the bottomand the terminal of the meter are closed by ultrasonic. (Please specified when ordering).
5+1 digits display (99999.1kWh) by step motor type impulse register
Standard configuration one port of pulse output passive (polarity), May select increase a distant port of pulse output passive(nonpolarity). And contact with all kind of AMR system conveniently, Complying with standard IEC 62053-31 and DIN 43864.
Standard configuration only one LED instructions signal of energy impulse (red), may select add instructions power supply state(green) and automatic detection the direction of the flow of load current and instructions by LED (when display yellow, that ismeaning the direction of the flow of load current reverse). Please specified when ordering.
Single direction single component measure single phase three wire active energy consumption. It is nothing with direction ofthe flow of load current. Complying with standard IEC 62053-21.
Direct connect operation, type 2A wiring.
Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (ProductConfiguration code is TK).


Technical parameters

 Model

Accuracy

Reference
voltage (V)

Current
specifications (A)

Starting
current (A)

Insulation
performance

 DEM313TL

Class 1

240

5(30)
10(60)
20(100)

0.02
0.04
0.08

AC voltage 4kV for 1 minute,
1.2/50us waveform
impulse voltage 6kV

*If you need different reference voltage or current specification, please advisory our sales.

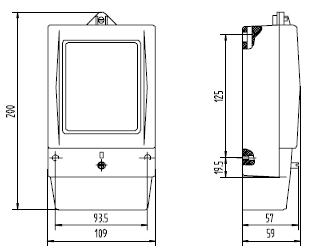

Outer and mount dimension


Wiring diagram (Type 2A)

Terminal

 Note

1 L1 inlet phase line
3 L2 inlet phase line
4 L2 outgoing  phase line
6 L1 outgoing  phase line
2 and 5 Port of pulse output passive
