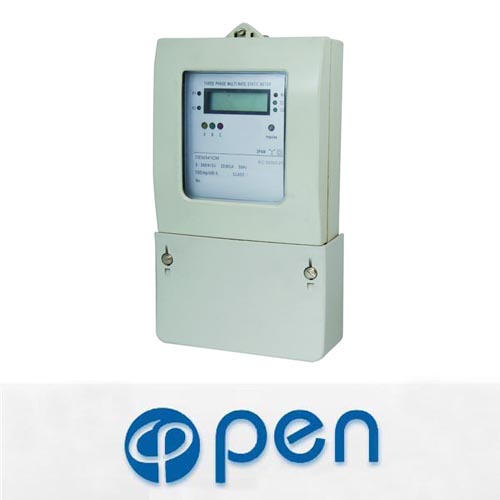

DEM341CM

THREE PHASE FOUR WIRE ELECTRONIC MULTI-RATE FRONT BOARD INSTALLED ACTIVE ENERGY METER





Application

Model DEM341CM three phase four wire electronic multi-rate front board installed active energy meter is a kind of three phase four wire two tariffs (tariff conversion is controlled by timer outside or similar equipment) active energy meter, the meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net, it is use for setting indoor or out door meter box. This meter has seven digits LCD displays shows various consumption data and information. It has following features: good reliability, light weight, specious nice appearance, convenient installation, etc.





Functions and features

Front board three fixed installation, up and down mounting holes center distance is 198-212 mm, users can choose any one by themselves.
Have two tariffs, and port of set the tariff, input control voltage 0-90 Vac, set up tariff F1, input control voltage 150-400 Vac, set up tariff F2, the tariff conversion is controlled by timer outside or similar equipment.
Standard configuration cycle display every 5 second, it can display 6 data at most. Can select the data which displayed. The decimal median which displayed can choose set one or two. (Default two decimal, please specified when ordering)
Use memory that is not loss easy, the data can be kept forever after power cut off.
There are a polarity port of pulse output passive closed and a nonpolarity port of pulse output passive distant, the output rate is 10 or 100 imp/kWh (can select), Complying with standard IEC 62053-31 and DIN 43864.
Eight LED instructions respectively power supply state, signal of energy impulse, the direction of the flow of load current, and the state rates just now
Single direction three components measure three phase four wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
Standard configuration for direct connect operation, type 16B wiring, we can also choose another type of wiring, and use CT (Product Configuration code is CO) and PT & CT (Product Configuration code is CQ ), type 48B wiring for operation.
Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is CL).





Technical parameters

 Model

Accuracy

Reference
voltage (V)

Current
specifications (A)

Starting
current (A)

Insulation
performance

 DEM341CM

Class 1

3 X 127/ 220
3 X 230/ 400

5(30)
10(60)
20(100)

0.02
0.04
0.08

AC voltage 4kV for 1 minute,
1.2/50us waveform
impulse voltage 6kV

*If you need different reference voltage or current specification, please advisory our sales.

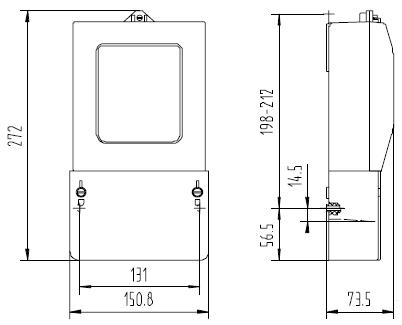

Outer and mount dimension

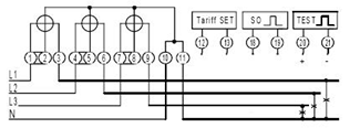

Wiring diagram (Type 16B)

Terminal

 Note

1 Inlet  L1 phase line
3 Outgoing L1 phase line
4 Inlet  L2 phase line
6 Outgoing L2 phase line
7 Inlet  L3 phase line
9 Outgoing L3 phase line
10 Inlet neutral line
11 Outgoing neutral line

12 and 13 Port of set the tariff
18 and 19 Port of pulse output passive distant
20 and 21 Port of pulse output passive closed
