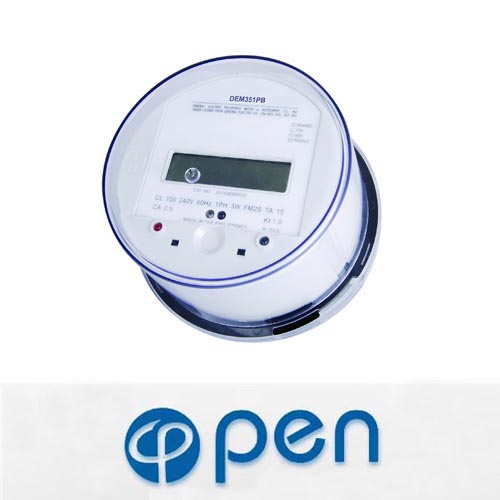

DEM351PB |
||||||||||||
| SINGLE PHASE THREE WIRE ELECTRONIC SOCKET ACTIVE ENERGY METER | ||||||||||||
| Application | ||||||||||||
|
Model DEM351PB single phase three wire electronic socket installed active energy meter is a kind of new style single phase three wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21 and standard ANSI C12.10-1997. It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase AC electricity net, it is use for setting indoor or outdoor meter box. This meter has 7 digits LCD displays shows power. And there is far infrared communication module in it, can read the meter and set the system parameters conveniently, it has following features: good reliability, light weight, specious nice appearance, convenient installation, etc. |
||||||||||||
| Functions and features | ||||||||||||
| Socket installed, the cover is made of PC material which is transparent and anti-UV molded overall, the terminal is made of black glass fiber which can fire-retardant and enhanced PC material. It has following features: Good weather ability, anti-impact, specious appearance, etc. complying with standard ANSI C12.10-1997. 8 digits LCD display, may select 6+2 digits display (999999.91kWh, default) or 7+1 digits display, can be set by the port of far infrared communication by users. There is a port of far infrared pulse output, use for checking conveniently. There is a port of far infrared state communication, standard configuration communication agreement complying with standard DL/T645-1997, may select other configuration communication agreement. LED instructions signal of energy impulse (red). Automatic detection of the flow of load current, and display on LCD (when display, that is meaning the direction of the flow of load current reverse). Single direction single component measure single phase three wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21. VDirectly connect operation, type 2S wiring, may select single phase two wire, Directly connect operation, type 1S wiring (Product Configuration code is PA). |
||||||||||||
| Technical parameters | ||||||||||||
|
||||||||||||
| *If you need different reference voltage or current specification, please advisory our sales. | ||||||||||||

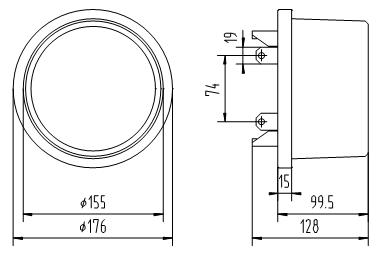

| Outer and mount dimension | ||||||||||||
 |
||||||||||||
| Wiring diagram (Type 2S) | ||||||||||||
|
