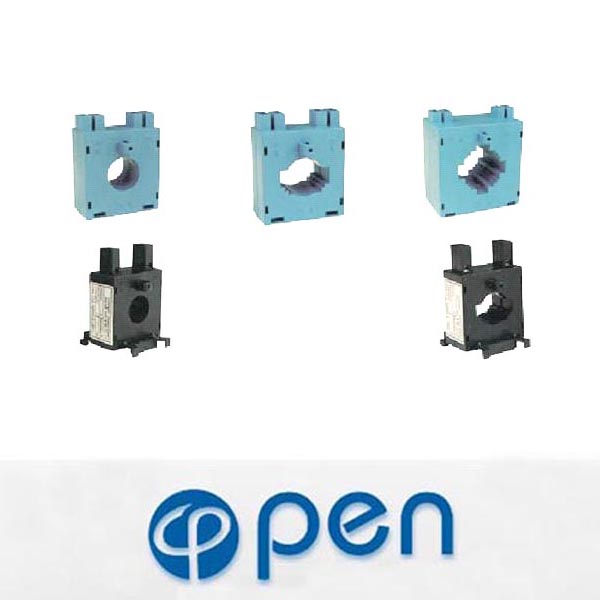

DX Current Transformers

DX Series:
Model DX-20, DX-30, DX-40 are available for connecting with cable, and also available for connecting with bus bar.
Maximum voltage:
Frequency:
Class:
Short-time thermal current:
Mounting methods:
Window dimensions		 0.66KV
50-60Hz
1.0
Ith=60Ih
either by din rail (35mm) or by screws
diameter 22mm (DX-20, DX-20L)
31 X 10mm (DX-30, DX-30L)
41 X 10mm (DX-40)
Technical data & Specification:
Model
Primary/
secondary
Busbar Hole
Dimension
(MM)
Rated
Burden
(VA)
Class
Rated
Voltage
DX-20
50/5A-150/5A
Ø=20mm
1.5-2.5
1.0
660V
DX-30
100/5A-500/5A
30 X 10mm
1.5-2.5
1.0
660V
DX-40
150/5A-1000/5A
40 X 10mm
3-10
1.0
660V
DX-20L
50/5A-150/5A
Ø=20mm
1.5-2.5
1.0
660V
DX-30L
100/5A-500/5A
30 X 10mm
1.5-2.5
1.0

660V
Dimension of case (mm):
Model
A
B
C
D
E
DX-20
53
28
57
66
54
DX-30
53
28
57
66
54
DX-40
71
45
73
81
65
DX-20L
53
28
57
66
54
DX-30L
53
28
57
66

54
