Application

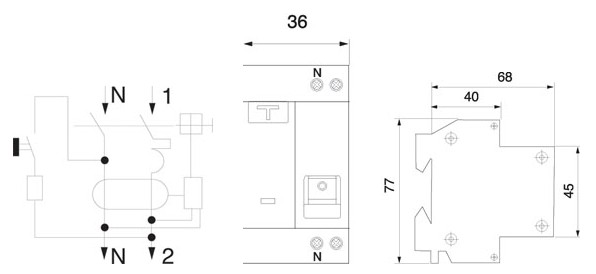

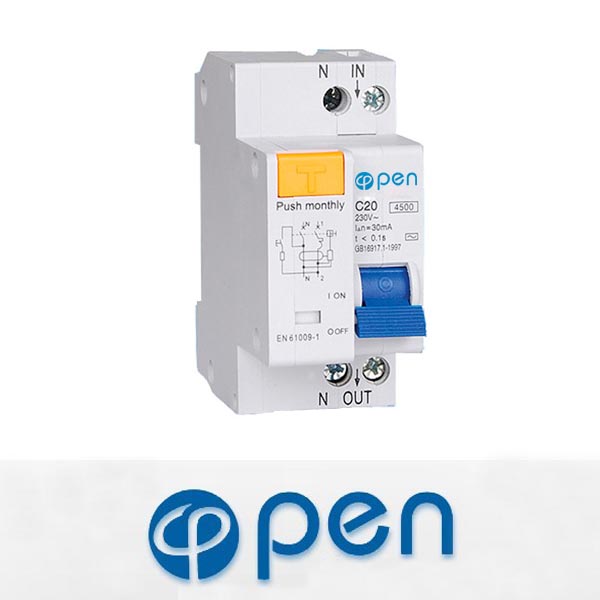

DPNL RCBO is used in the single phase residence circuit of AC 50Hz/60Hz,rated voltage 230V,used as electron shock protection.It can protect civil electron circuit form overload and short circuit This product has advantages of small volumn,high breaking capacity zero,and live wire are cut off at the same time,also protecting person from electric shock when the live wire connected opposite.This product conforms to IEC61009,GB16917 Stardands.

Rated current (A)	No.of pole	Rated voltage (V)	Rated current of frame	Rated leakage operating	Rated leakage non-operating current	Rated leakage breaking time	Breaking capacity (A)
6,10,16, 20,25,32	1+N	230	32	30	15	≤0.1s	3000

Rated current(A	Rated voltage(A)	Limited time	Pre-engage result	Start state	Note
1.13In	all	t≥1h	non-trip	cold state
1.45In	all	t<1h	trip	heat state	he current rise steadily to a fixed #118alue within 5s
2.55In	all	1	non-trip	cold state
5In	all	t≥0.1s	trip	old state	Open the supplementary switch,connect the power
10In	all	t<0.1s	trip	old state	Open the supplementary switch,connect the power
