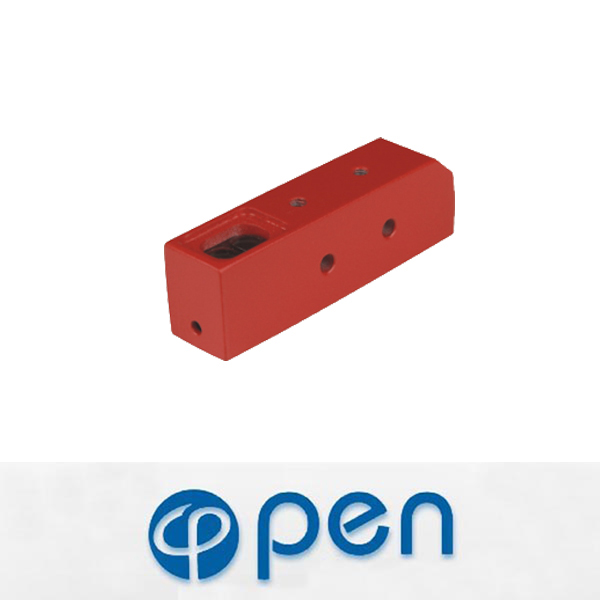

G13 Photoelectric switch:
| Structural category | Photoelectric switch | |||
| outward appearance code | G13 | |||
| Diffuse type | detection distance | 10cm | ||
| DC 10~30V | NPN | NO | G13-3A10NA | |
| NC | G13-3A10NB | |||
| NO+NC | ||||
| PNP | NO | G13-3A10PA | ||
| NC | G13-3A10PB | |||
| NO+NC | ||||
| AC 90~250V | Controllable silicon | NO | ||
| NC | ||||
| relay output | ||||
| Retroreflictive | detection distance | 1m | ||
| DC 10~30V | NPN | NO | G13-3B1NA | |
| NC | G13-3B1NB | |||
| NO+NC | ||||
| PNP | NO | G13-3 B1PA | ||
| NC | G13-3 B1PB | |||
| NO+NC | ||||
| AC 90~250V | Controllable silicon | NO | ||
| NC | ||||
| relay output | ||||
| Trough beam | detection distance | 3m | ||
| DC 10~30V | NPN | NO | G13-3 C3NA | |
| NC | G13-3 C3NB | |||
| NO+NC | ||||
| PNP | NO | G13-3 C3PA | ||
| NC | G13-3 C3PB | |||
| NO+NC | ||||
| AC 90~250V | Controllable silicon | NO | ||
| NC | ||||
| relay output | ||||
| Control output | DC:200mA | |||
| Consumptio current | DC15Ma | |||
| Response time | DC2ms | |||
| Directional angel | 30 -100 | |||
| Detected object | transparent or opaque body | |||
| Working environment temp. | -25~+55 | |||
| Intensity of illumination Working environment | Sunlight under 10000LX incadescent lamp under 3000LX | |||
| Shell material | Metal | |||
| Protection grade | IP54 | |||
