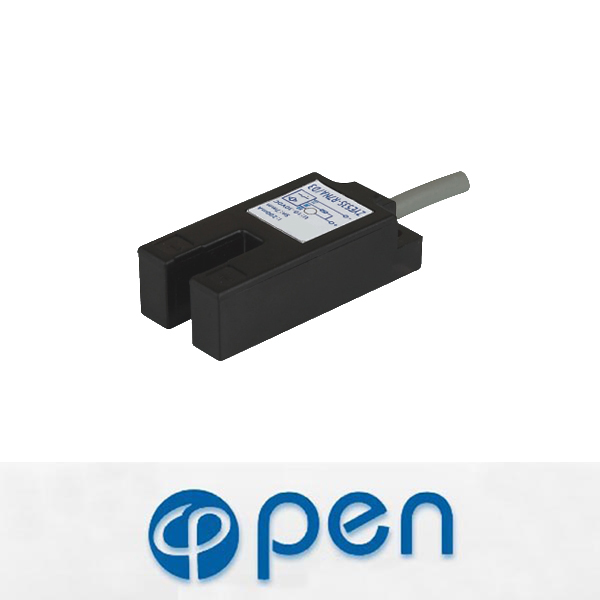

G56 Photoelectric switch:
| Structural category | Photoelectric switch | |||
| outward appearance code | G56 | |||
| Diffuse type | detection distance | |||
| DC 10~30V | NPN | NO | ||
| NC | ||||
| NO+NC | ||||
| PNP | NO | |||
| NC | ||||
| NO+NC | ||||
| AC 90~250V | Controllable silicon | NO | ||
| NC | ||||
| relay output | ||||
| Retroreflictive | detection distance | |||
| DC 10~30V | NPN | NO | ||
| NC | ||||
| NO+NC | ||||
| PNP | NO | |||
| NC | ||||
| NO+NC | ||||
| AC 90~250V | Controllable silicon | NO | ||
| NC | ||||
| relay output | ||||
| Trough beam | detection distance | 17m | ||
| DC 10~30V | NPN | NO | G56-3E01NA | |
| NC | G56-3E01NB | |||
| NO+NC | G56-3E01NC | |||
| PNP | NO | G56-3E01PA | ||
| NC | G56-3E01PB | |||
| NO+NC | G56-3E01PC | |||
| AC 90~250V | Controllable silicon | NO | ||
| NC | ||||
| relay output | ||||
| Control output | DC:200mA AC:300mA | |||
| Consumptio current | DC15mA AC10mA | |||
| Response time | DC2ms AC20ms | |||
| Directional angel | 30 -100 | |||
| Detected object | transparent or opaque body | |||
| Working environment temp. | -25~+55 | |||
| Intensity of illumination Working environment | Sunlight under 10000LX incadescent lamp under 3000LX | |||
| Shell material | Plastic | |||
| Protection grade | IP54 | |||
