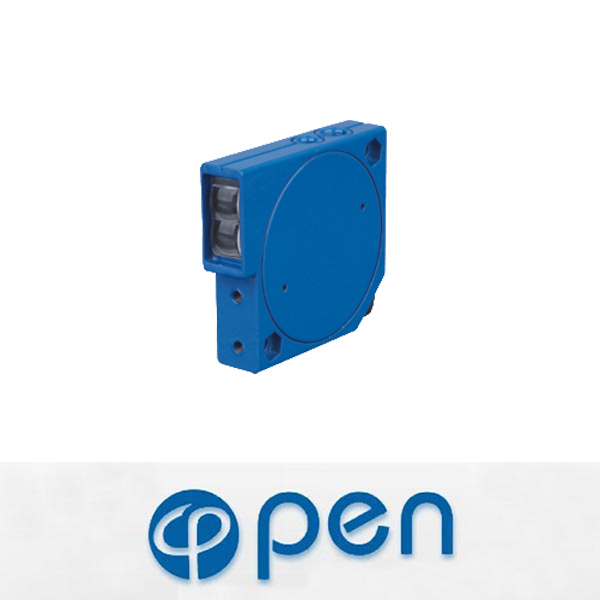

G80

G80
catalogue download Catalogue Download
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger Live Messenger
skype me Skype Me
e-mail us sales@opengroup.cc
Add to Basket Inquiry Basket


G80 Photoelectric switch:

Structural category Photoelectric switch
outward appearance code G80
Diffuse type detection distance 80cm
DC 10~30V NPN NO G80-3A80NA
NC G80-3A80NB
NO+NC G80-3A80NC
PNP NO G80-3A80PA
NC G80-3A80PB
NO+NC G80-3A80PC
AC 90~250V Controllable silicon NO G80-2A80LA
NC
relay output G80-2A80JC
Retroreflictive detection distance 3m
DC 10~30V NPN NO G80-3B3NA
NC G80-3B3NB
NO+NC G80-3B3NC
PNP NO G80-3B3PA
NC G80-3B3PB
NO+NC G80-3B3PC
AC 90~250V Controllable silicon NO G80-2B3LA
NC
relay output G80-2B3JC
Trough beam detection distance 5m
DC 10~30V NPN NO G80-3C5NA
NC G80-3C5NB
NO+NC G80-3C5NC
PNP NO G80-3C5PA
NC G80-3C5PB
NO+NC G80-3C5PC
AC 90~250V Controllable silicon NO G80-2C5LA
NC
relay output G80-2C5JC
Control output DC:200mA  AC:300mA
Consumptio current DC15mA  AC10mA
Response time DC2ms  AC20ms
Directional angel 30 -100
Detected object transparent or opaque body
Working environment temp. -25~+55
Intensity of illumination Working environment Sunlight under 10000LX  incadescent lamp under 3000LX
Shell material Plastic
Protection grade IP54
