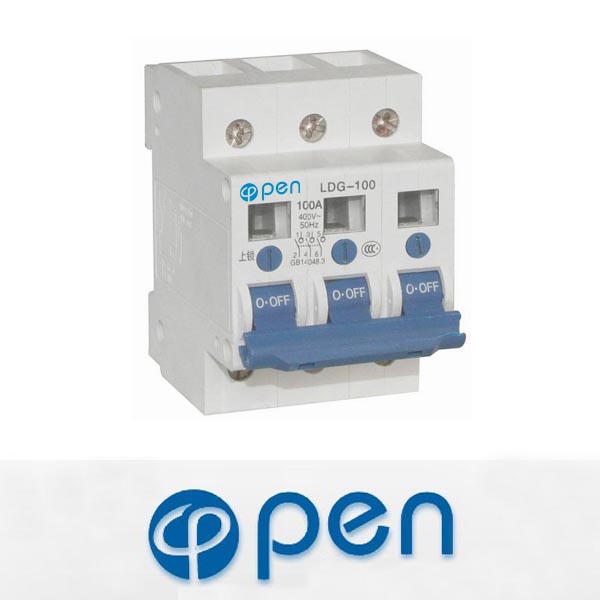

LDG-100 Isolator

LDG-100 Isolator
catalogue download Catalogue Download
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger Live Messenger
skype me Skype Me
e-mail us sales@opengroup.cc
Add to Basket Inquiry Basket


LDG-100 Isolator

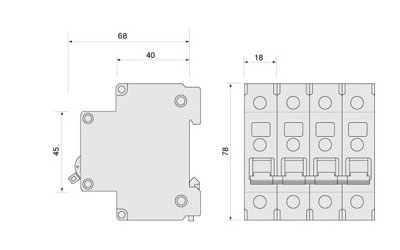

1.           1P 18mm 2P 36mm 3P 54mm 4P 72mm

2.           Rated Voltage: 230/400V AC

3.           Rated Current: 32 40 50 63 80 100A

4.           Rated Breaking Capacity: 1.05Un, 3In, cosΦ =0.65

5.           Rated Short-cut Withstanding Current:20In, 1s

6.           Rated Short-cut Connectivity:15In, 0.05s, cosΦ=0.95

7.           Utilization Category:AC-22B

8.           Electrical/Mechanical Endurance: In Un cosΦ=0.8

             Unloaded 1700 Loaded 300 Total 2000(no. of operations)

9.            Terminal Capacity(max): 50mm

10.        Position(On/Off) Indicating Device

11.        Safety Lock System

12.        Standard Conformity: IEC:60947-3:2001

13.        Patented in China
