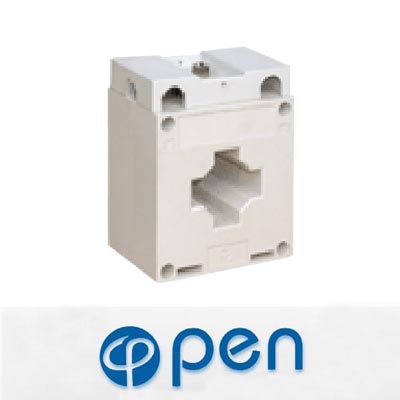

The Current Transformers Are Made According To IEC-185 Standard.
Class Of Accuracy: 1.0 (see table)
Rated Voltage: 600V (see table)
Rated Sec. Current 5A(or 1A on request)
Security Factor: FS5
Working Temperature Range: -20?澫45?漂R>ABS plastic case, toally enclosed, built-in cover, and several ampere outputs at secondary side iron plate for fixing metal housing-2 pieces-1, iron bar and acrew for fixing copper bar-3 pieces.
|
Model
|
Rated Current (A)
Primary/Secondary
|
Busbar Hole
Dimension
|
Rated
Burden (VA)
|
Accuracy
Class
|
Rated
Voltage (V)
|
Rated
Frequency(Hz)
|
|
MSQ-30
|
30/5A-300/5A
|
30 x 10mm
|
1.5-2.5
|
3.0~0.5
|
600
|
50/60
|
|
MSQ-40
|
150/5A-800/5A
|
40 x 10mm
|
5-10
|
1.0~0.5
|
600
|
50/60
|
|
MSQ-60
|
400/5A-1200/5A
|
60 x 20mm
|
5-10
|
1.0~0.5
|
600
|
50/60
|
|
MSQ-100
|
800/5A-3000/5A
|
100 x 10mm
|
15
|
1.0~0.5
|
600
|
50/60
|
|
MSQ-130
|
1500/5A-5500/5A
|
130 x 10mm
|
15
|
1.0~0.5
|
600
|
50/60
|
|
Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
|
MSQ-30(small)
|
60
|
36
|
67
|
17
|
60
|
31
|
10
|
59
|
|
MSQ-30
|
75
|
43
|
82
|
17
|
60
|
31
|
10
|
71
|
|
MSQ-40
|
75
|
43
|
82
|
17
|
60
|
31
|
10
|
71
|
|
MSQ-60
|
101
|
44
|
111
|
17
|
60
|
31
|
10
|
71
|
|
MSQ-100
|
145
|
45
|
139
|
17
|
60
|
31
|
10
|
72
|
|
MSQ-130
|
196
|
46
|
210
|
17
|
60
|
34
|
11
|
72
|
