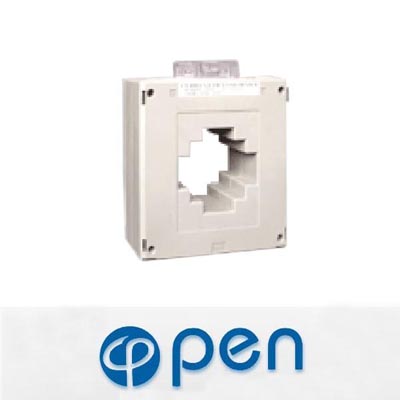

LMK3-0.66 Current Transformers

LMK3-0.66 Current Transformers
catalogue download Catalogue Download
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger Live Messenger
skype me Skype Me
e-mail us sales@opengroup.cc
Add to Basket Inquiry Basket



1. The Current Transformers Are Made According To IEC-185 Standard.
2. Class Of Accuracy: 1.0 (see table)
3. Rated Voltage: 600V (see table)
4. Rated Sec. Current 5A(or 1A on request)
5. Security Factor: FS5
6. Working Temperature Range: -20~+45
7. ABS plastic case, toally enclosed, built-in cover, and several ampere outputs at secondary side iron plate for fixing metal housing-2 pieces-1, iron bar and acrew
for fixing copper bar-3 pieces.

Model
Rated Current
(A)
Busbar Hole
Dimension
Rated
Burden (VA)
Accuracy
Class
Rated
Voltage (V)
Rated
Frequency(Hz)

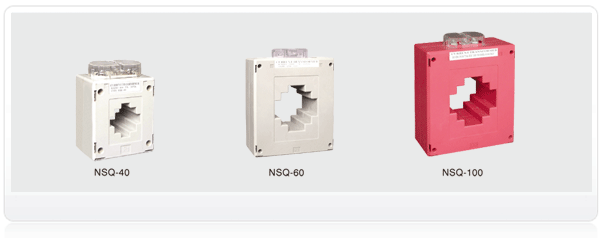

NSQ-30CT
100/5A-300/5A
30 x 10mm
5
0.5
660
50/60
NSQ-40CT
200/5A-800/5A
40 x 10mm
5
0.5
660
50/60
NSQ-60CT
400/5A-1200/5A
60 x 20mm
10
0.5
660
50/60
NSQ-100CT
1000/5A-3000/5A
100 x 20mm
15
0.5
660
50/60

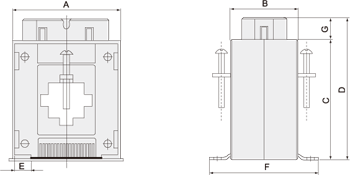

Model

A

B

C

D

E

F

G

NSQ-30CT

85

53

95

112

13

83

18

NSQ-40CT

85

53

95

112

13

83

18

NSQ-60CT

111

53

131

148

13

83

18

NSQ-100CT

155

53

174

192

13

83

18
