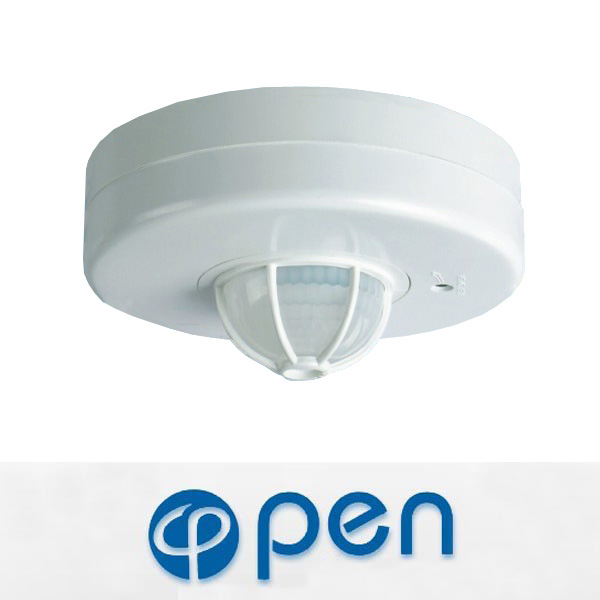

LX28A Ceiling mount Sensors,Alarm

Power Source: 100~130V/AC
   220~240V/AC
   90~250V/AC
Power Frequency: 50-60Hz
Ambient Light: <3Lux~daylight
Rated Load: 1200W(220~240V/AC)
     800W(100~130V/AC)
     3000W(220~240V/AC) (Required by customer)
   1500W(100~130V/AC) (Required by customer)
Time Delay: 5Sec.~9Min.
Detection Distance: 12m( 24 adjustable)
Green Led Activity Indicator
Work Temperature: -20~+40
Power Consumption: 0.45W(static 0.1W
Installation height: 1.5-3.5m
Detection Motion Speed: 0.6-1.5m/s
Working Humidity: <93%RH

Technical Data
Typical Applications
Private Office
Storage Closet
Conference Room
Restroom w/o obstructions
Smaller Classroom
Other enclosed areas with
Obstructions.

Sensor Highlights
SMD Technology Sensor
Manual Override
360o Coverage
Self-contained Relay
Adjustable Time Delay
Adjustable Lux
Adjustable Sensitivity
Multiple Sensor Capability
CE ,GS and UL Listed
