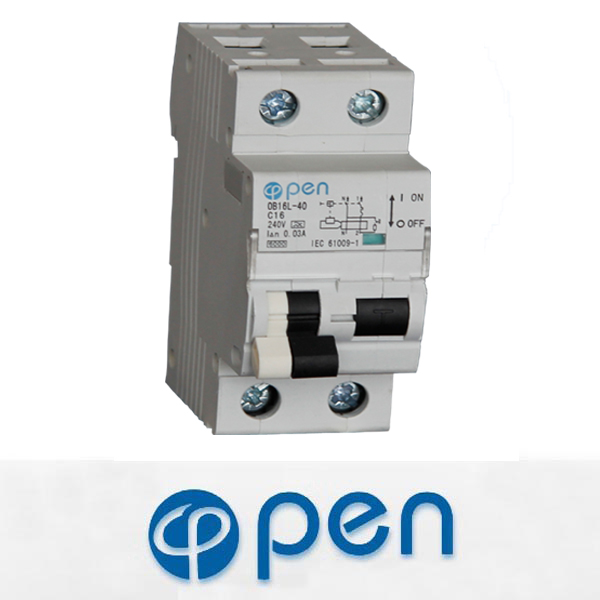

Construction and Feature

Provides protection against earth fault/leakage current, short-circuit, overload, and function

of isolation

Provides complementary protection against direct contact by human body

Effectively protects electric equipment against insulating failure

Provides comprehensive protection to household and commercial distribution systems

Standard:

IEC6008、

GB16917.1

Construction features

The pass electric current characteristic of circuit breaker can not be changed with outside mechanical tool ;The accessory which made by ferrous metal should have proper antirusting measure ;The operating organization must be flexible and reliable, and should have freed function to take off and deduct; the Operate part can not be taken down from the shell outer of products,;the shell of product can not influence the operating organization to work.

Order note

1.Minimum order quantity, time during the order to delivery;
2.Need to indicate type , specification , rated current , number of poles, quantity of the products while ordering.

Product's advantage

1.Our products have the guarantee period of 36 calendar months,that is a high quality and reliability;
2.our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
3.The fast and flexible production form aim at the customer require;
4.The deliveries exactly in accordance with customer orders
5.The fast transportation.
6.Wide in variety, entire in specifications, has high short-circuit breaking capacity,can reach 4.5KA , it is aesthetic in appearance to design and convenient to install.

Normal operation and mounting requirement

Electro-mechanical endurance: 4000 cycles

Connection terminal: pillar terminal with clamp

Connection capacity:

Flexible conductor 10mm2

Rigid conductor 16mm2

Main technical parameters

Type	OB16L-40 Electro-magnetic type
Residual current characteristics	AC
Pole No.	1P+N
Tripping curve	B, C
Rated short-circuit capacity	6000A
Rated current (A)	6, 10, 16, 20, 25, 32, 40
Rated voltage	230V AC
Rated frequency	50/60Hz
Rated residual operating current(mA)	30
Tripping duration	instantaneous≤0.1s
Installation	On symmetrical DIN rail 35mm

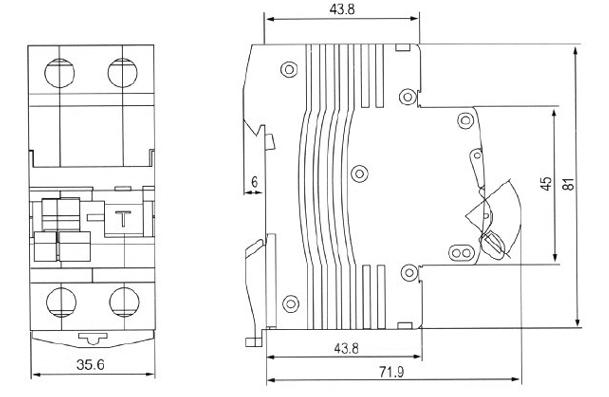

Overall and mounting dimensioned chart
