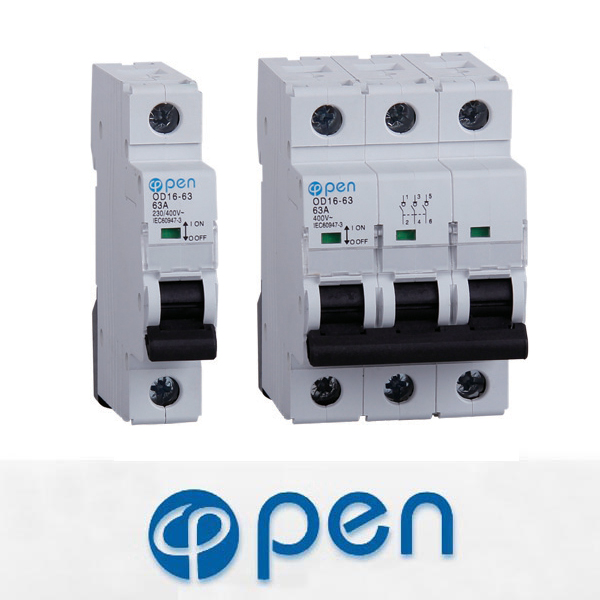

OD16-63

OD16-63
catalogue download Catalogue Download
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger Live Messenger
skype me Skype Me
e-mail us sales@opengroup.cc
Add to Basket Inquiry Basket




Summarize
Application scope
The product is applicable to circuit with rated voltage 230(240)/400(415)V AC, 50Hz for power distribution and motor operation as switching disconnector in both household & commercial and electric equipments installations.
The product, free of maintenance, is suitable for use by non-professionals.
Standard
IEC60947-3

Construction features
1. Capable of switch electric circuit with load
2. adaptable to padlock device
3. contact position indication
4. capable of quickly releasing stored energy operation
5. highlighted of high making and breaking capacity
6. high short-circuit current withstand capacity
7. used as main switch for household and similar installation

Order note
1.Minimum order quantity, time during the order to delivery;
2.Need to indicate type , specification , rated current , number of poles, quantity of the products while ordering.

Product's advantage
1.Our products have the guarantee period of 36 calendar months,that is a high quality and reliability;
2.our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
3.The fast and flexible production form aim at the customer require;
4.The deliveries exactly in accordance with customer orders
5.The fast transportation.
6.Wide in variety, entire in specifications, has high short-circuit breaking capacity,can reach 4.5KA , it is aesthetic in appearance to design and convenient to install.

Normal operation and mounting requirement
·Circumstance temperature -5°C~ +40°C, average temperature not exceeding 35°C.
·Altitude above sea level less than 2000 m.
·Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
·Installation class II or III.
·Pollution class 2.
·Installation method DIN Rail mounting type.
·The external magnetism shall not be more than 5 times of terrestrial one.
·Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the handle is at upper position.

Main technical parameters

Type
 OD16-63
 Pole No.
 1, 2, 3, 4
 Rated current (A)
 16, 25, 40, 63
 Rated voltage
  230(240)/400(415)V AC
 Rated frequency
 50/60Hz
 Rated short-circuit making capacity
 10000A
 Rated withstand current
 1000A within 1sec
 Electro-mechanical endurance
 10000 cycles
 Terminal connection:
 Screw terminal Pillar terminal with clamp
 Connection capacity
 Rigid conductor 25mm2
 Installation:
 On symmetrical DIN rail 50mm

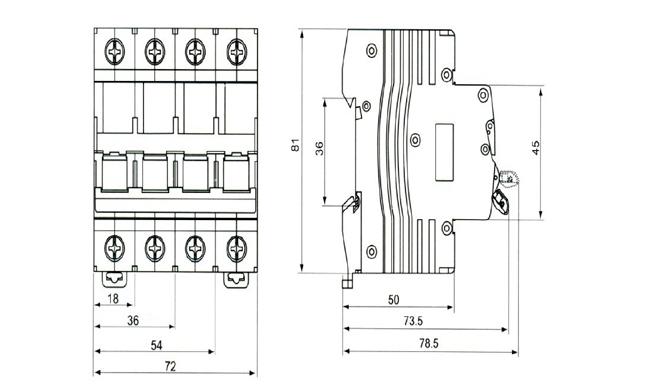

Overall and mounting dimensioned chart
