Main technical parameters
|

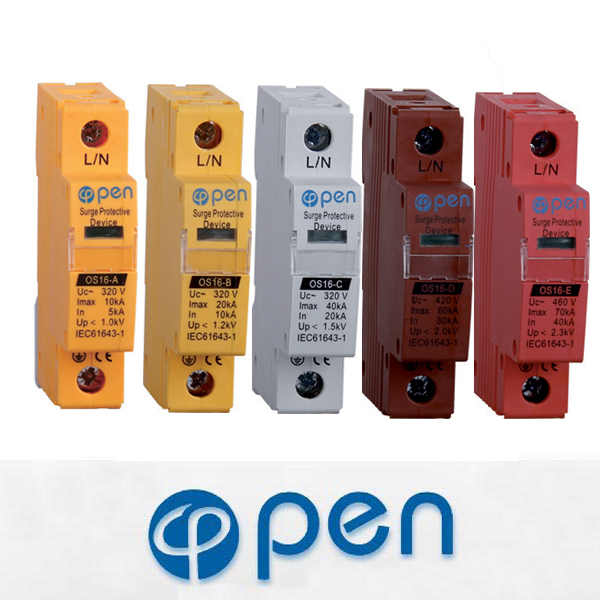

Model & Specification
|
OS16－A
|
OS16－B
|
OS 16－C
|
OS16－D
|
OS16－E
|
|
Rated Voltage Un
|
220
|
220
|
220
|
380
|
380
|
|
Maximum continuous operating voltage Uc(V)
|
320
|
320
|
320
|
420
|
420
|
|
Voltage protection level Up（kV）（8 /20µs）
|
1
|
1.2
|
1.5
|
2
|
2.3
|
|
Nominal discharge current In（kA）（8 / 20µs ）
|
5
|
10
|
20
|
30
|
40
|
|
Rated varistor voltage
|
510±10﹪
|
680±10﹪
|
|||
|
Maximum discharge current Imax（kA）（8 / 20µs ）
|
10
|
20
|
40
|
60
|
70
|
|
Response time （ms ）
|
＜25
|
||||
|
Power withstanding（J）（2ms）
|
300
|
390
|
640
|
1500
|
1580
|
|
Ambient Temperature
|
-40 ～ +80 ℃
|
||||
|
Minimum connection section （mm²）
|
2.5 Phase Line、Null Line
|
||||
|
6 Earth Line
|
|||||
|
Function unit colour
|
deep yellow
|
light yellow
|
light grey
|
brown
|
red
|
