PCK 500-1500VA

PCK 500-1500VA
catalogue download Catalogue Download
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger Live Messenger
skype me Skype Me
e-mail us sales@opengroup.cc
Add to Basket Inquiry Basket

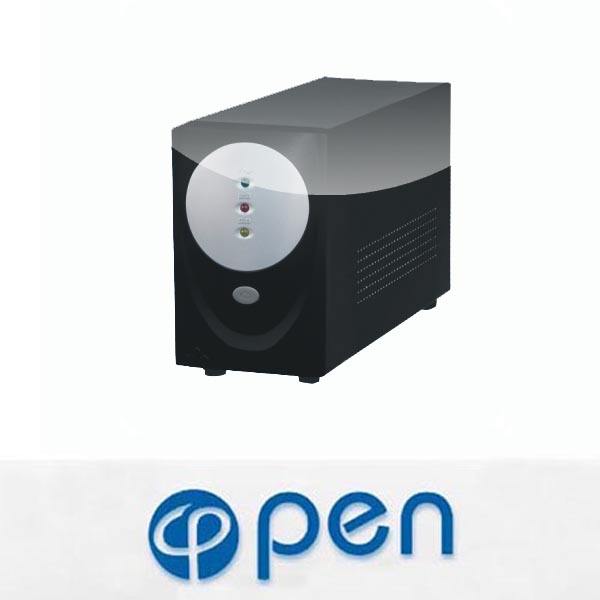

PCK 500-1500VA  standby UPS PCK 500-1500VA  standby UPS PCK 500-1500VA  standby UPS
Main Features

Automatic voltage ragulation(AVR)
Wide Input Voltage Range Option
High/Low Voltage Protection
Overload/Short Protection
Cool start computer even there is no main power
Automatic recharge even UPS is off
Beeping Alarm
Colored LED display
Intelligent Battery Management
Smart RS232, RJ11,USB Option
Compatibility With Generators
  Overview

Product

Requirements

Model 1

Model 2

Model 3

Model 4

Model 5

Model 6

Power (VA)

PCK-500

PCK-650

PCK-800

PCK-1000

PCK-1500

PCK-2000

Input

Voltage

120 VAC or 220/230/240VAC ±25%(145-280V±5VOption)

Frequency

60/50Hz ±10%

Output

Voltage (Inverter Mode)

120 VAC or 220/230/240VAC ±10%

Capacity

500VA/300W

650VA/360W

800VA/480W

1000VA/600W

1500VA/880W

2000VA/1100W

Frequency (Inverter Mode)

60/50Hz±10%

Transfer Time

≤6MS typical

Waveform

modified-Sinewave

Protection

Spike & Surge Suppression

yes

Over/Under Volt.

Switch to Bat. O / P when Mains over regulation range

Over load /short Circuit

Fuse & current limited for both Mains and Battery modes

Function

Cool start

Cool start computer even there is no main power

Automatic recharge

Automatic recharge even UPS is off

Battery

Type

Lead-Acid maintenance-free

Dc Bus

12V7.0Ah

12V9.0Ah

12V7.0Ah

12V9.0Ah

12V7.0Ah

Number

1 PC

2 PCS

3PCS

Recharge time

8hours≥90%

Back up time(one PC)

8-15mins

10-18mins

15-25mins

20-30mins

25-35mins

30-45mins

Physical

Weight (KGs)

5

5.5

6.5

10.5

11.5

16.5

Shipping Wt.

5.6

6

7

11.5

12

17

Product Dimensions (mm)

335*95*160

355*120*195

410*145*215

Package Dimensions (mm)

395*360*230 mm/ 2 PCS in 1 Carton

435*395*275/ 2 PCS in 1 Carton

495*250*335

Soft ware

 Windows & NT

Auto save & shut down

Efficiency

AC-AC

1

DC-AC

0.6

Acoustic

Noise level

≤45dB

Environmental

Temperature

 -5-45 DegreeC

Humidity

20% to 90%

Power Outlets

No. and types

 2 SOCKETS

3 SOCKETS

4 SOCKETS
