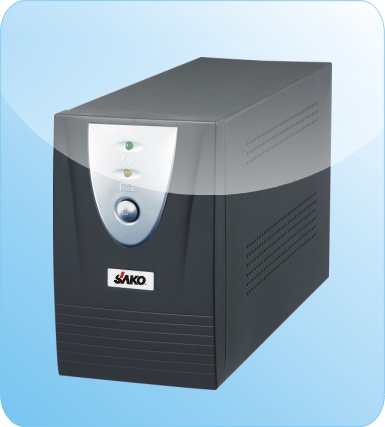

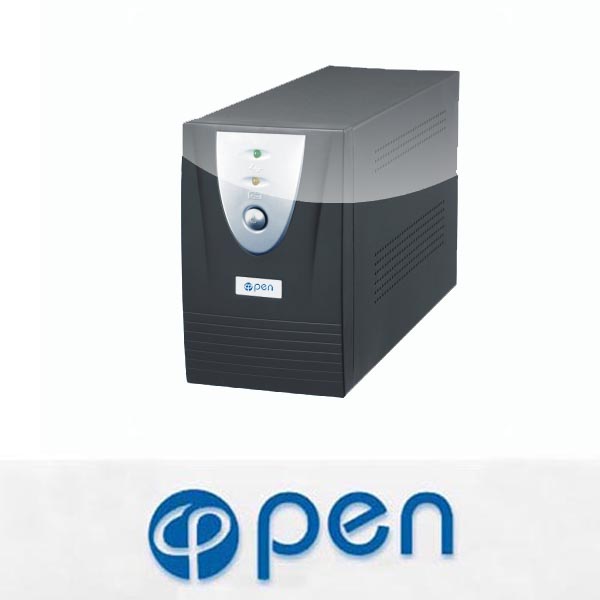

PCM 500-1500VA

PCM 500-1500VA
catalogue download Catalogue Download
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger Live Messenger
skype me Skype Me
e-mail us sales@opengroup.cc
Add to Basket Inquiry Basket



Main Features

Automatic voltage ragulation(AVR)
Wide Input Voltage Range Option
High/Low Voltage Protection
Overload/Short Protection
Cool start computer even there is no main power
Automatic recharge even UPS is off
Beeping Alarm
Colored LED display
Frequency Selection Automatically
Intelligent Battery Management
Smart RS232 and RJ11 Option
Compatibility with generators
Compatibility with generators
  Overview

Product

Requirements

Model 1

Model 2

Model 3

Model 4

Model 5

Model 6

Model 7

Power (VA)

PCM-350

PCM-500

PCM-650

PCM-800

PCM-1000

PCM-1200

PCM-1500

Input

Voltage

120 VAC or 220/230/240VAC ±25%(145-280V±5V Option)

Frequency

 60/50Hz +/-10%

Output

Voltage (Inverter Mode)

120 VAC or 220/230/240VAC ±10%

Capacity

350VA/210W

500VA/300W

650VA/360W

800VA/480W

1000VA/600W

1200VA/720W

1500VA/880W

Frequency (Inverter Mode)

 60/50Hz +/-10%

Transfer Time

6MS typical

Waveform

modified-Sinewave

Protection

Spike & Surge Suppression

yes

Over/Under Volt.

Switch to Bat. O / P when Mains over regulation range

Over load /short Circuit

Fuse & current limited for both Mains and Battery modes

Function

Cool start

Cool start computer even there is no main power

Automatic recharge

Automatic recharge even UPS is off

Battery

Type

Lead-Acid maintenance-free

Dc Bus

12V4.5Ah

12V7.0Ah

12V9.0Ah

12V7.0Ah

12V7.0Ah

12V9.0Ah

Number

1PC

1 PC

2 PCS

Recharge time

8hours≥90%

Back up time(one PC)

5-8mins

8-15mins

10-18mins

15-25mins

20-30mins

20-30mins

25-45mins

Physical

Weight (KGs)

4.5

5

5.5

6.5

10.5

11

11.5

Shipping Wt.

5

5.6

6

7

11

11.5

12

Product Dimensions (mm)

335*95*160

355*120*195

Package Dimensions (mm)

395*360*230 mm/ 2 PCS in 1 Carton

435*395*275/ 2 PCS in 1 Carton

Soft ware

 Windows & NT

Auto save & shut down

Efficiency

AC-AC

1

DC-AC

0.6

Acoustic

Noise level

≤45dB

Environmental

Temperature

 -5-45 DegreeC

Humidity

20% to 90%

Power Outlets

No. and types

 2 SOCKETS

3 SOCKETS
