RCT

RCT
catalogue download Catalogue Download
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger Live Messenger
skype me Skype Me
e-mail us sales@opengroup.cc
Add to Basket Inquiry Basket

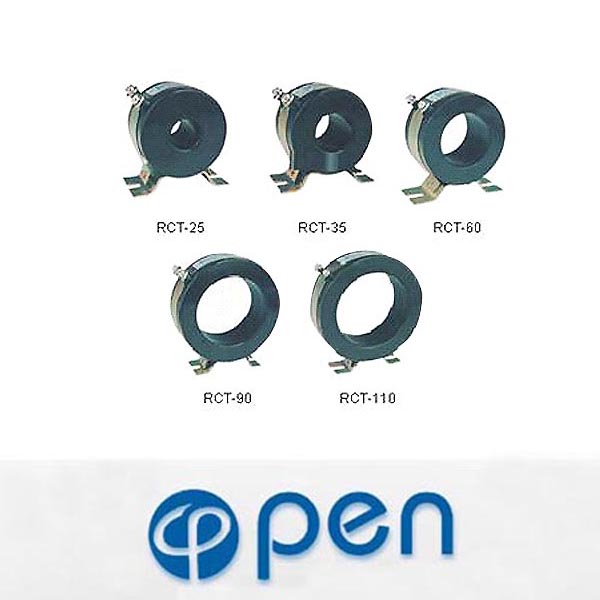

RCT Series:
Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient:		 30A-3000A
5A, 1A
IEC44-1
0.66KV
50-60Hz
15VA
1.0
Ith=60 X Ih
FS<5
Specification:

Model
Primary / secondary (A)
RCT-25
15/5, 200/5, 30/5, 40/5, 50/5, 60/5, 75/5, 100/5A
RCT-35
30/5, 50/5, 60/5, 80/5, 100/5, 120/5, 150/5, 200/5A, 250/5, 300/5
RCT-60
300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1200/5
RCT-90
800/5, 1000/5, 1200/5, 1500/5, 1600/5
RCT-110
1000/5, 1200/5, 1500/5, 1600/5, 2000/5, 2500/5, 3000/5
Dimension of case (mm):
Model
RCT-25
RCT-35
RCT-60
RCT-90
RCT-110
A
93
93
93
93
102
B
78
78
78
78
86
C
25
32
60
90
111
D
78
78
104
136
157
E
2
2
2
2
2
F
55
55
41
41
52
G
9
9
9
9
9
