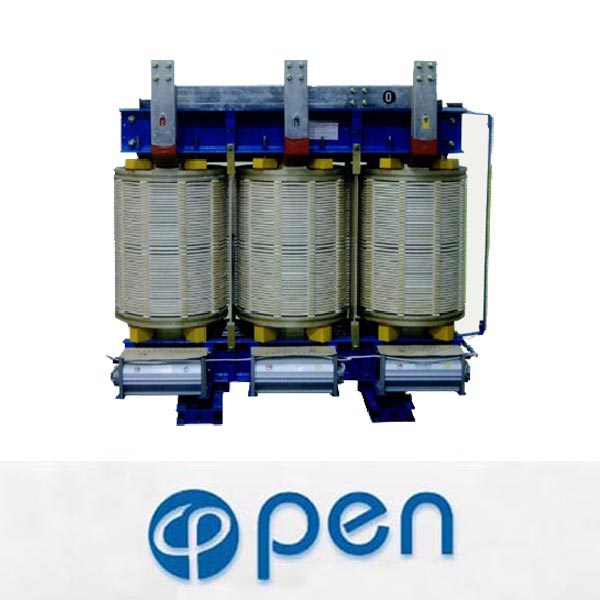

Environmental protection dry-type power transformer :

Features of products:

SG(B) 10 type this series dry-type distributing transformer has strong withstanding of thermal shock,overload capacity. Beside, it has many good points such as flame-retardant,low-loss and low partial discharge capacity. Easy to be maintained. Therefore, it is suitable for the using in the adverse circumstances of high requirement for fire protection, high degree of load fluctuation and dirty, moist, such as airport, power plant, metallurgy, hospital, skyscraper, shopping center,and residential areas and other special environments like oil, chemical industry,nuclear power plant ,nuke, etc.

Core:

The iron core applies imported high-performance cold-rolled grain-oriented silicon-steel plate and it applies 45 fully-inclined joint form. Between the layers of winding, it applies flexible fastening device and makes no-load loss and noise low.

The iron core surface is dealt with special craft which makes the noise low and the iron core rustless during running.

The iron core is clamped bytensile rod and no punched hole. The upper and lower clamps are connected by drawplate and fixed with the base .by fixed with flexible pad and cushion structure ,it makes the winding of lower vibration and noise.

HV.LV Coil materials:

The high-voltage and low-voltage coils are made up of Nomex insulating material and dipped in solvent-free immersion paint many times by VPI vacuum pressure device and is solidified by high temp. baking. The high-voltage coil applies continuous mode structure which makes high voltage. Low heat dispersion , easy to be thermal runaway and low mechanical strength. It is therefore that the reliability of the product is ensured. The low-voltage coil applies foil or strong current helix structure of longitudinal air flue. After dipping. The coil has a good moisture proof , impacting resistance and no chapping, no partial discharge. It can be decomposed and recycled.

Over-thermal protection

Over-load ability

Safety

Reliability

Excellent dampproof

Volume smaller,weight more light

Environmental protection

Outgoing wire

Tech. Data of 10KV SG(B) 10 series H-grade insulating dry-type power transformer:

Rated cap. (KVA)

Voltage group
(kV)

Connection method

Loss(KW)

Non-load current

Impedance voltage

Insulating
  level

Weight(Kg)

Non-load

Load
(145)

80

high-voltage
11
10.5
10
6.3
6
low-voltage
0.4

Dyn11
or
Yyno

0.39

1.75

2.8

4

H/H

490

100

0.40

1.88

2.40

520

125

0.48

2.13

2.00

650

160

0.56

2.55

1.80

740

200

0.62

3.10

1.80

850

250

0.72

3.60

1.80

1005

315

0.88

4.60

1.80

1270

400

0.97

5.40

1.80

1470

500

1.16

6.60

1.80

1750

630

1.35

7.90

1.60

6

1970

800

1.52

9.50

1.60

2350

1000

1.76

11.40

1.30

2620

1250

2.08

12.50

1.30

3180

1600

2.44

13.90

1.30

4100

2000

3.32

17.50

1.20

4500

2500

4.00

20.30

1.20

5340
