| Main Features | ||||
| MAIN FUNCTION | ||||
| 1.Reverse pole protection. | ||||
| 2.Over charge protection. | ||||
| 3.Output current display. | ||||
| 4.With float voltage charging. | ||||
| 5.Application:Automotive repairing factory, diesel motor | ||||
| set, motorcycle, safty lighting, etc. | ||||
| Overview | ||||
|

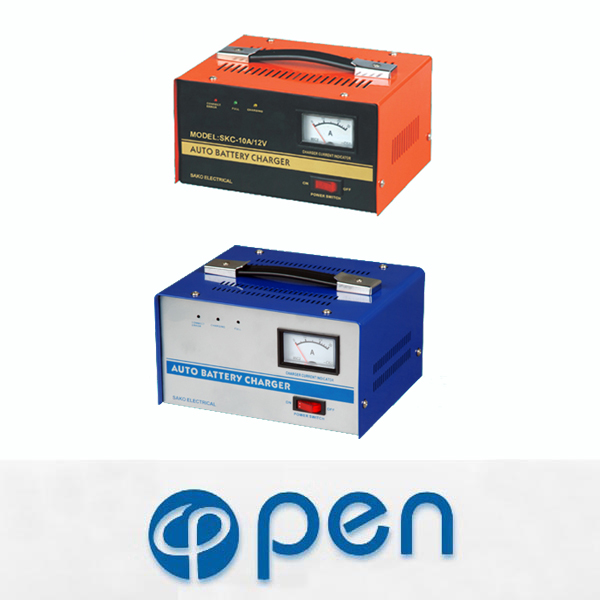

BATTERY CHAGER SPECIFICATION |
||||
|
Model |
SKC-6A |
SKC-10A |
SKC-15A |
SKC-30A |
|
Nominal Battery Voltage |
12V DC |
12V DC |
12V DC |
12V DC |
|
Maximum Output-Current(Amps ave) |
|
10A DC |
15A DC |
30A DC |
|
Total Battery Capacity (recommanded range) |
30Ah～150Ah |
100Ah～200Ah |
200Ah～300Ah |
100Ah～500Ah |
|
Maximum total load on batteries during charging |
6A DC |
10A DC |
15A DC |
30A DC |
|
Maximum Voltage Electronic Regulation |
14.50V ＠ 25℃ |
|||
|
Mains Supply Voltage |
220～240Vac 50～60Hz |
|||
|
Maximum Consumption |
72VA |
120VA |
180VA |
360VA |
|
Tolerance to Mains supply distortion |
16％THD |
|||
|
Mains protection |
Reverse polarity, short circuit |
|||
|
Output Protection |
short circuit, charging full |
|||
|
Temperature range |
-10℃～45℃ |
|||
|
Metering:Amps Analogue Moving Coil |
10A FSD |
15A FSD |
20A FSD |
50A FSD |
|
Cabinet:W×D×H |
200×163×125 |
200×163×125 |
200×163×125 |
200×163×125 |
|
Connections:input |
5A 3pin 2m cable |
10A 3pin 2m cable |
10A 3pin 2m cable |
10A 3pin 2m cable |
|
Connections:output |
100A Binding posts |
100A Binding posts |
100A Binding posts |
100A Binding posts |
|
Connections:output cable minimum size |
10mm2 Per2m |
10mm2 Per2m |
10mm2 Per2m |
10mm2 Per2m |
