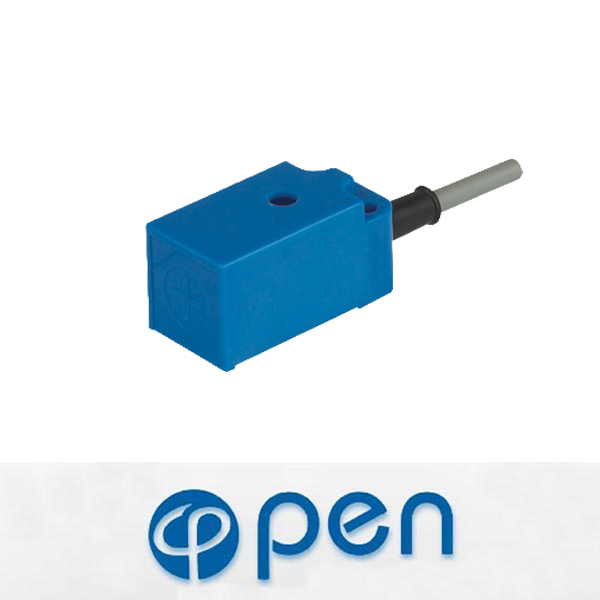

SLC3 proximity switch:

Structural category Angular column type
outward appearance code SLC3
Flush detection distance 5mm
DC 6~36V NPN NO SLC3-6T5N1
NC SLC3-6T5N2
NO+NC
PNP NO SLC3-6T5P1
NC SLC3-6T5P2
NO+NC
Two wire system NO SLC3-6T5D1
NC SLC3-6T5D2
AC 90~250V SCR control-lable silicon NO
NC
NO+NC
relay output
Non-Flush detection distance
DC 6~36V NPN NO
NC
NO+NC
PNP NO
NC
NO+NC
Two wire system NO
NC
AC 90~250V SCR control-lable silicon NO SLC3-90M5A1
NC SLC3-90M5A2
NO+NC
relay output
Control output DC 200mA
SCR/relay 300mA
Output voltage drop DC/AC DC3VAC10V
Consumptio current DC15mAAC10mA
Standard detected object 20*20*1(A3 iron)
Repeated precision 0.1
DC/AC Response freq. 100Hz/15Hz
Working environment temp. -25~+75
Insulation resistance 50MΩ
Shell material ABS Resin
Protection grade IP67
