Main technical parameters

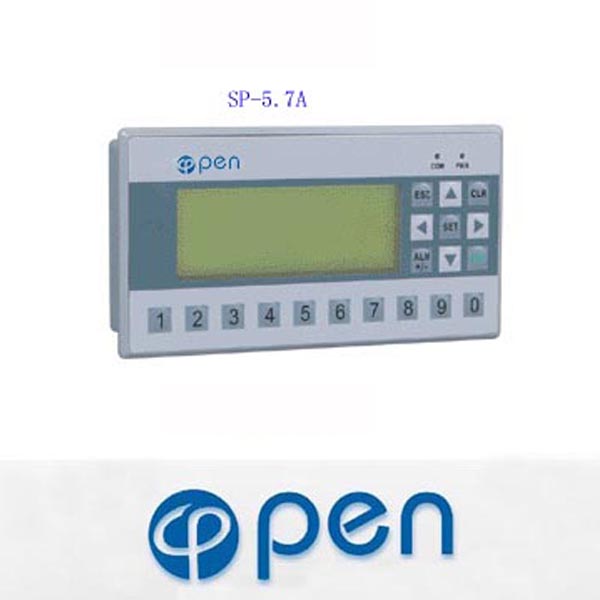

Model SP-5.7A
Display size 5.7"(Length: width = 4:3)
Resolution 640*480
Brightness 500cd/㎡
Color 262,114Color
Contrast 250:01:00
Backlight Life 50,000 hours
Touchpad 5 line high-precision touchpad
Communication port USB, RS232, RS422, RS485
Power Supply DC24V(±15%)
User memory 12M
Power 4W
FCC compliance MeetFCC,Class  A
CE Certification Meet EN50081-2 and EN50082-2 standards
Pressure test 1000vac,1Minute
Protection class IP65 (Front Panel)
Operating temperature 0~42℃
Working humidity 10~90%RH
Case Material ABS + PC plastic
Dimensions (mm) 172*140*58.5
Installation hole size (mm) 163*130
Weight Approximately 0.8kg
Configuration software SPELENDA3.1
Exterior color Silvery white
For PLC All major PLC (Please provide PC model)
