Main technical parameters

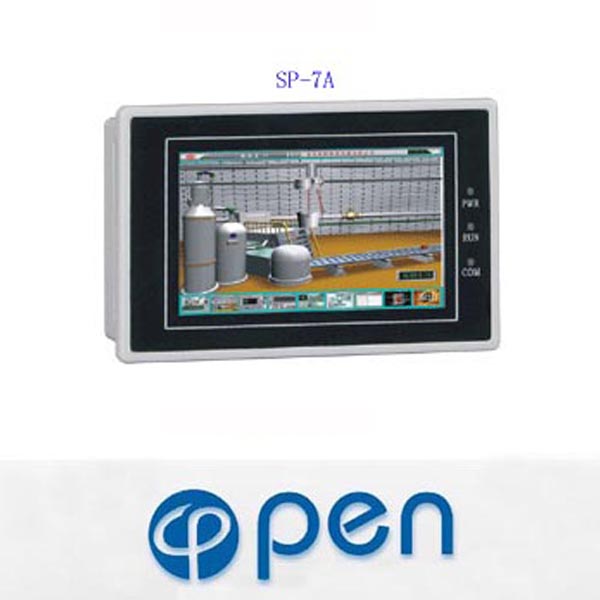

Model SP-7A
Display size 7.0"(Length: width = 16:9)
Resolution 640*480
Brightness 250cd/㎡
Color 262,144 colors true color
Contrast 250:01:00
Backlight Life 50,000 hours
Touchpad 5 line high-precision touchpad(Single-point touch life of> 35 million times)
Communication port USB, RS232,RS422/485
Power Supply DC24V(±15%)
User memory 12W
Power 6W
FCC compliance MeetFCC,Class  A
CE Certification Meet EN50081-2 and EN50082-2 standards
Pressure test 1000vac,1Minute
Protection class IP65 (Front Panel)
Operating temperature 0~42℃
Working humidity 10~90%RH  Suspected non-cold
Case Material ABS + PC plastic
Dimensions (mm) 216.0*150.0*40.5
Installation hole size (mm) 208.0*143.5
Weight Approximately 1.5kg
Configuration software SPELENDA3.1
Exterior color Silvery white
For PLC All major PLC (Please provide PC model)
