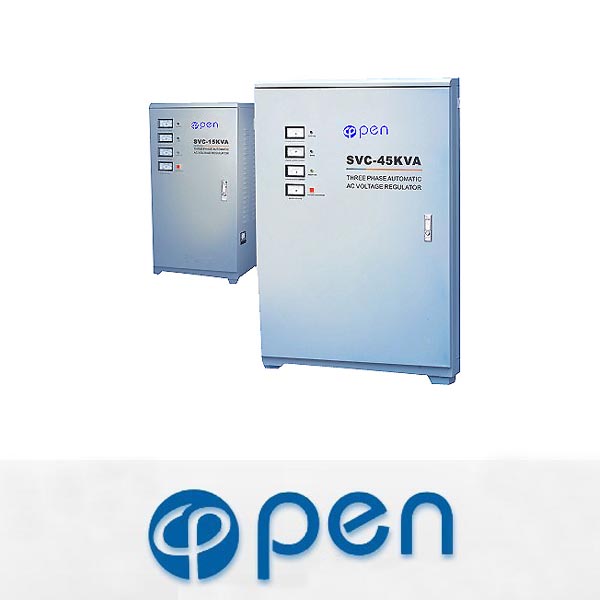

SVC three-phase high accuracy full automatic AC voltage stabilizers

General
This series three-phase stabilizer is the combination of highfunction Single-phase stabilizer.
The incoming power of the power network is three-phases four wires system in system,the output power also three-phases four wires with three electric meters to separately indicate three-phase and shift switch and voltage meter to shifting and surveying each phase.

Application
Conputers,test equipment,lighting systems,saftey alarm systems,X-ray systems,communication systems,medical equipment,duplicators,stereo sound equipment,industrial automatic equipment,color film developing equipment,digital control machine tools,checkout equipment,TV sets,office appliances.

Technical Index

Input voltage

160-250V

Phase

Single-phase

Frequency

50-60HZ

Adjusting time

<1S(When input voltage has a change of 10%)

Max of

0.5KVA 1KVA 1.5KVA 2KVA 3KVA 5KVA 10KVA 15KVA 20KVA 30KVA

Output current

2A 4A 6.5A 8A 12A 20A 40A 60A 80A 120A

Protection over voltage

245±5V

Delay

Short Deley3-7 sec long Delay 3-7min

Ambient temperature

-5&#8764;+40

Temperature rise

<60(full load)

Relative humidity

<90

Wave form distortion

No wave form distortion

Efficiency

>95%

Insulation resistance

≥2MΩ
