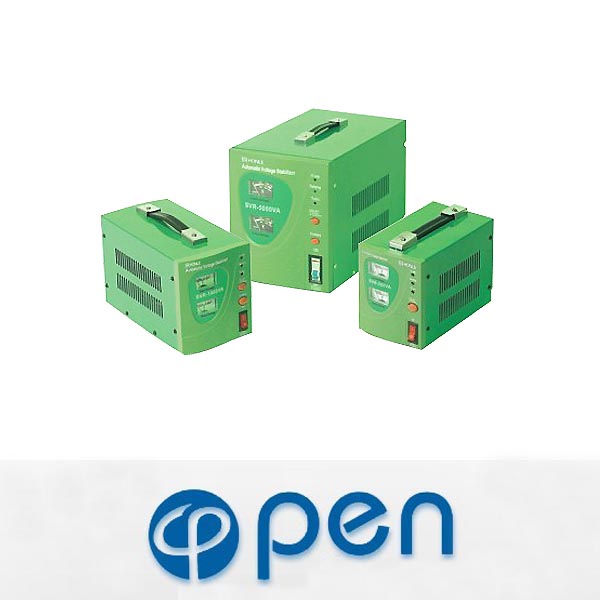

SVR Relay type voltage regulator
Feature
This series automatic voltage regulator is a kind of relay control stabilizer, it owns the wide input voltage range, compact size, light in weight, delay output, little wave distortion and reliable, strict design and accurate assemble. This kind of stabilizer can add voltage regulating function also. In one word, this type stabilizer is very popular in overseas for the competitive and stable performance.
Technical Features
Input voltage:150-270V
Output voltage:220V±8% 110V±10%
Delay output time:3-7min/3-7sec
Frequency:50HZ/60HZ
|
Model |
Requirements |
Model 1 |
Model 2 |
Model 3 |
Model 4 |
Model 5 |
Model 6 |
|
Power(VA) |
SVR-500VA |
SVR-1000VA |
SVR-1500VA |
SVR-2000VA |
SVR-3000VA |
SVR-5000VA |
|
|
Input |
Phase |
Single phase |
|||||
|
Voltage |
AC150V-270V |
||||||
|
Frequency |
50HZ/60HZ |
||||||
|
Output |
Phase |
220V±8% 110V±10% |
|||||
|
Voltage |
98% |
||||||
|
Frequency |
50HZ/60HZ |
||||||
|
Over voltage protection |
AC 246V±4V |
||||||
|
Protection |
Under-volt |
Optional |
|||||
|
Over-volt |
Optional |
||||||
|
Over heat |
Optional |
||||||
|
By pass |
No |
||||||
|
Delay |
3-7min/3-7sec(optional) |
||||||
|
Over load/short circuit |
yes |
||||||
|
Environment |
Operating temperature |
-1040 |
|||||
|
Storage temperature |
-1545 |
||||||
|
humidity |
% to 90% |
||||||
|
Packaging |
Pcs per carton |
8 |
4 |
4 |
4 |
1 |
1 |
|
Machine size(cm) |
20X11X14.5 |
25X12.5X16.5 |
28X14.6X19 |
30X15X22.5 |
34.5X20.5X25.5 |
34.5X20.5X25.5 |
|
|
Package dimensions(cm) |
44X27X33 |
57X27.8X19 |
63X32X21.5 |
67X32.8X25 |
39.5X25X29 |
39.5X25X29 |
|
