| Main Features | |||
| 1.Wide Input solar voltage Range . | |||
| 2.Compact design ,with solar controller、battery、and inverter | |||
| built inside, save more power and space ,high efficiency. | |||
| 3.Short circuit protection. | |||
| 4.Over voltage,Low voltage,over discharge.over load protection . | |||
| 5.Display meter and LED show all the conditions. | |||
| 6.Only solar panel and load connection outside, more conveniently. | |||
| 7.Easy to move anywhere. | |||
| 8.With DC 12v/24v and AC 220 doulbe output voltage together . | |||
| Overview | |||
|
SPECIFICATION |

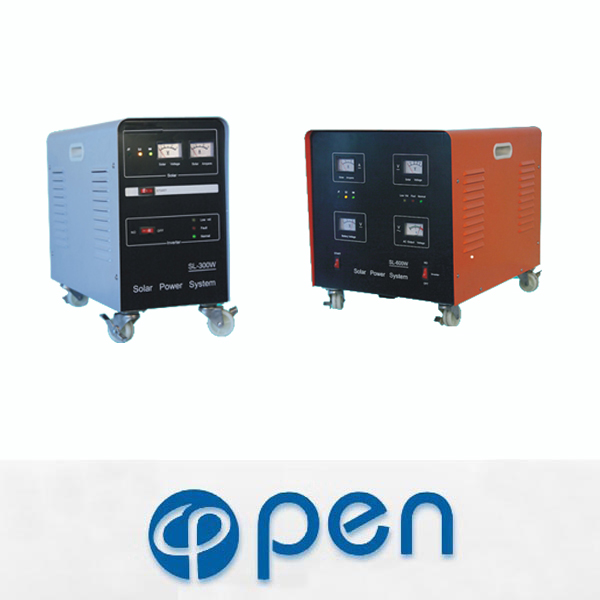

Solar -SL300W |
Solar -SL600W |
|
|
Solar panel INPUT parmeter |
rated input panel (WATT) |
100W |
200W |
|
peak Input Voltage Vmp(V) |
17.5vdc |
35vdc |
|
|
Peak Input Current Imp(A) |
5.71A |
5.71A |
|
|
open -voltage Voc(v) |
21.5V |
43V |
|
|
material |
polycrystal /single crystal |
||
|
shortage current Isc(A) |
6.46A |
6.46A |
|
|
Battery |
Battery built inside(VA) |
12V/100AH |
12V/100AH×2 |
|
over charge protected voltage(v) |
14.5V±0.2V |
29V±0.2V |
|
|
over charge back voltage |
13.2V |
26.4V±0.2V |
|
|
over discharge protected voltage |
10.5V±0.4V |
21V±0.2V |
|
|
OUTPUT |
Output Power(W) |
300 |
600 |
|
Output Voltage |
12VDC 3A & AC 220V±10% |
24VDC 3A & AC 220V±10% |
|
|
Output frequency |
50HZ±5% |
50HZ±5% |
|
|
output waveform |
step wave |
step wave |
|
|
back up time(full load) |
>10hour(36W AC lamp or 50w ACFAN) |
>10 hours(one PC) |
|
|
overload &shortage protection |
yes |
||
|
Output overload capacity |
120% |
||
|
PROTECTION |
Protection |
over load/ over voltage/ low battery/ low voltage/ |
|
|
Noise(dB) |
Input low/ hight voltage/ short current protection |
||
|
AMBIENT |
working Temperature |
< 5 (1 mter) |
|
|
Humidity |
0~40 degree(storage -40℃～50℃) |
||
|
Sea Level(m) |
0~95% ( no condensation) |
||
|
L×W×H |
≤1500 |
||
|
DIMENSION |
Weight(Kg) |
514.0×212.8×404.6MM |
524.0×372.8×427.6MM |
