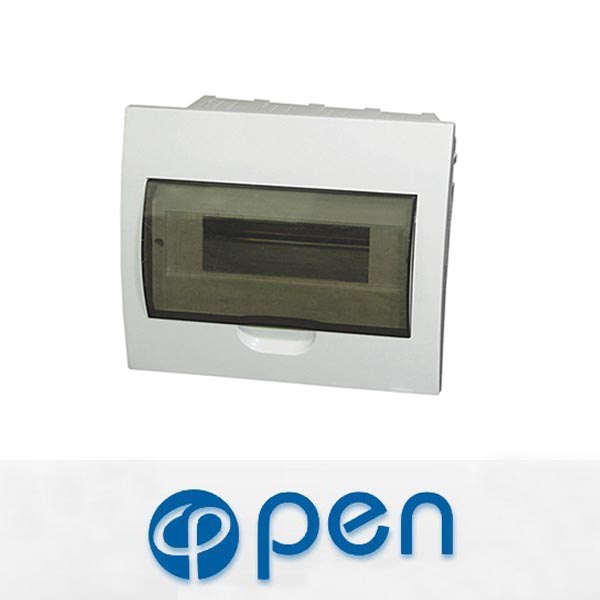

Combination illuminating distribution box is suitable for distributing control
of modern bulidings, such as large stories buildings, guesthouse, passenger
transport station. Used in AC 50-60Hz, below 415V, illuminating and mini
power controllingircuit as over current, overload and shout circuit protection
and frequency switch under the rated working state.
Iron Base Dimension
|
Specification |
L |
W |
H |
|
TSM-2ways |
99 |
140 |
60 |
|
TSM-4ways |
107 |
190 |
85 |
|
TSM-6ways |
143 |
190 |
85 |
|
TSM-8ways |
179 |
190 |
85 |
|
TSM-10ways |
222 |
200 |
85 |
|
TSM-12ways |
250 |
190 |
85 |
|
TSM-15ways |
306 |
190 |
85 |
|
TSM-18ways |
361 |
217 |
85 |
|
TSM-24ways |
252 |
310 |
85 |
|
TSM-36ways |
290 |
475 |
85 |
|
TSM-45ways |
473 |
326 |
76 |
Plastics Base Dimension
|
Specification |
L |
W |
H |
|
TSM-2ways |
90 |
140 |
60 |
|
TSM-4ways |
112 |
200 |
66 |
|
TSM-6ways |
150 |
200 |
66 |
|
TSM-8ways |
184 |
200 |
66 |
|
TSM-10ways |
222 |
200 |
66 |
|
TSM-12ways |
256 |
200 |
66 |
|
TSM-15ways |
310 |
200 |
66 |
|
TSM-18ways |
365 |
220 |
76 |
|
TSM-24ways |
257 |
310 |
76 |
|
TSM-36ways |
293 |
455 |
76 |
|
TSM-45ways |
473 |
326 |
76 |
