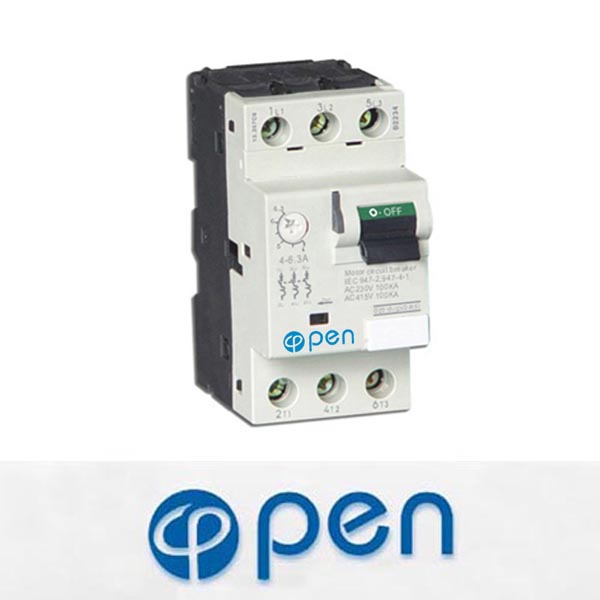

XHV2-RS(GV2-RS)series motor protecting breaker adopts the design of module,It has beautifulshape,small ＆#118alue,complete range of function and reliable performance.

Specification

XHV2-RS(GV2-RS)		XHV2(GV2-LS)(LE)
RS01C	0.1-0.16
RS02C	0.16-0.25
RS03C	0.25-0.40	LS03	0.25-0.40
RS04C	0.40-0.63	LS04	0.40-0.63
RS05C	0.63-1	LS05	0.63-1
RS06C	1-1.6	LS06	1-1.6
RS07C	1.6-2.5	LS07	1.6-2.5
RS08C	2.5-4	LS08	2.5-4
RS10C	4-6.3	LS10	4-6.3
RS14C	6-10	LS14	6-10
RS16C	9-14	LS16	9-14
RS18C	10-16	LS18	10-16
RS20C	13-18	LS20	13-18
RS21C	17-23	LS21	17-23
RS22C	20-25	LS22	20-25
RS32C	24-32

The rated power of three-phase electromtor controlled by breaker

Adjusting range of rated current (A)	Standard power of three-phase electromotor( KW) AC-3 50/60Hz
Adjusting range of rated current (A)	230/240V	400V	415V	440V	500V	690V
0.1-0.16	-	-	-	-	-	-
0.16-0.25	-	-	-	-	-	-
0.25-0.4	-	-	-	-	-	-
0.4-0.63	-	-	-	-	-	0.37
0.63-1	-	-	-	0.37	0.37	0.55
1-1.6	-	0.37	-	0.55	0.75	1.1
1.6-2.5	-	0.75	0.75	1.1	1.1	1.5
2.5-4	0.37	1.5	1.5	1.5	2.2	3
4-6.3	0.75	2.2	2.2	3	3.7	4
6-10	1.1	4	4	4	5.5	7.5
9-14	2.2	5.5	5.5	7.5	7.8	9
13-18	3	7.5	9	9	9	11
17-23	4	11	11	11	11	15
20-25	5.5	11	11	11	11	18.5
24-32	5.5	15	15	15	18.5	23
