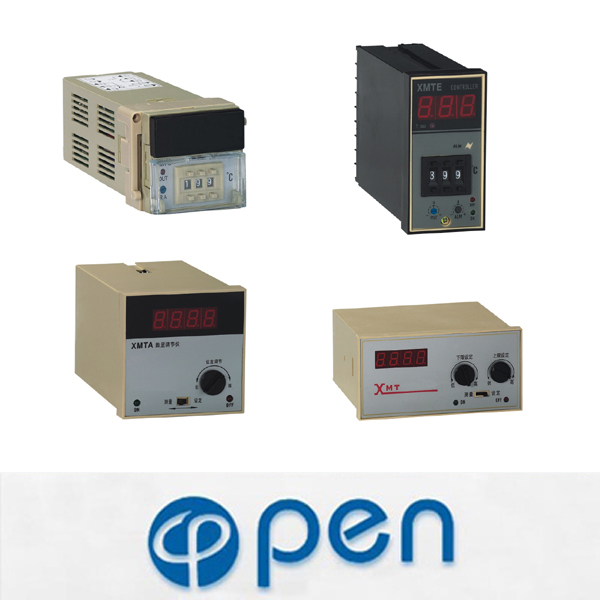

XMT series digital temperature controller

The XMT series meter,compared to traditional XC series moving coil meter and TDW meter,owns merits of high precision,strong shock resistance ability,good reliability,simple installation,clear reading,noparallax and long distance observation support has two digits,three digits,time proportion type,silicon controlled concessive adjusting function,PID type etc and can be added overrun alarm function according requirement on adjusting mode and its renewed product based on XC series product,widely used for -2001800 temperature measure and autocontrol of different industries such as metallurgy,textile,machinery,oven,refrigeration chemical industry, medical treatment and so on, and also can be used forparameters measure,display and control when equipped to sensor.

Input Signal



Adjusting Mode

Two digits adjusting(x0xtype)three digits adjusting(x2xtype)

Time proportion adjusting(x6xtype)silicon controlled zero cross(x7xtype)

silicon controlled three phases zero cross(x8xtype)PID adjusting(x9xtype)

Outline&installing dimension

Outline dimension 160×80mm installing dimension 152×76mm

Rated voltage of power supply

AC220V±10%  50/60Hz


Display precision 0.1 class,control precision may reach ±1

Work environment

Temperature 050,relative hunidity≤85%

Output capacity of contact

Relay connection point 5A 250VAC,voltage of no connection point DC12V for SSR use

Proportion cycle

Relay:30secs,no connection point:2 secs.

Power consumption


Temperature range

Thermocouple 01800    RTD -200600
