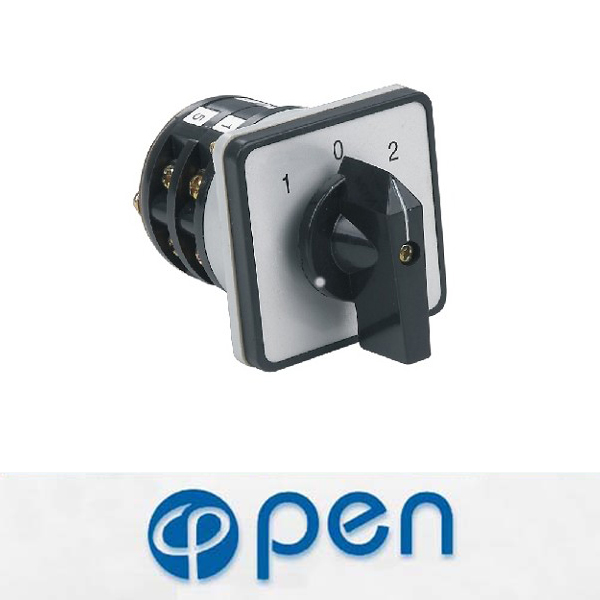

YMZ5 series changeover switch is used in the circuit of AC 50Hz, rated voltage up to 380V and below, DC voltage 240V and below, rated current up to 25A, to manually transfer the control circuit and electric meters non-frequently, aslo it can directly control small capacity alternating motor, used as master control and electric measurement.
|
TYPE |
YMZ5-25 |
|
|
Rated insulation voltage Ui (V) |
380 |
|
|
Rated thermal current Lth(A) |
25 |
|
|
Operating voltage Ue(V) |
380 |
|
|
Operating current Ie(A) |
15 |
|
|
P (KW) |
5.5 |
|
|
AC-23A operation cycles |
On load |
51×104 |
|
No load |
9×104 |
|
|
Total |
60×104 |
|
|
Electric life |
|
|
|
Operation freauency (cycles/n) |
120 |
|
